Limitations of Traditional Tire Mold Cleaning Technologies

In tire manufacturing, mold cleanliness directly affects tire appearance quality and molding accuracy. Traditional cleaning methods mainly include mechanical brushing, chemical cleaning, and ultrasonic cleaning. However, each of these methods shows clear limitations in practical applications. Mechanical brushing can remove surface residues, but it is prone to causing scratches and wear on the mold surface, which may affect mold precision and service life over long-term use. Chemical cleaning relies on corrosive solvents that may damage the mold substrate, while also posing environmental pollution and safety risks to operators. Ultrasonic cleaning, on the other hand, has limited effectiveness when dealing with complex tread patterns and stubborn rubber residues, making it difficult to meet the requirements of high-quality tire production.

Against this backdrop, tire mold laser cleaning technology has emerged as an advanced alternative, gaining increasing attention due to its high efficiency, precision, and environmental friendliness.

Advantages and Applications of Tire Mold Laser Cleaning Technology

Tire mold laser cleaning technology uses high-energy laser beams to act on the mold surface, instantly vaporizing or stripping away contaminants such as rubber residues, carbon deposits, and oil stains, thereby achieving efficient cleaning. As a non-contact cleaning method, laser cleaning avoids any mechanical contact with the mold surface throughout the process, effectively preventing scratches and wear. This makes it particularly suitable for high-precision tire molds.

Compared with traditional cleaning methods, laser cleaning requires no chemical agents, making the process more environmentally friendly. Smoke and particles generated during laser ablation can be efficiently collected and treated through integrated industrial fume extraction systems, resulting in minimal chemical wastewater or solid waste and fully meeting the requirements of green manufacturing. In terms of efficiency, laser cleaning can complete mold cleaning within a short time, significantly reducing downtime and improving overall production line efficiency.

In addition, laser cleaning systems typically feature a high degree of automation, enabling automatic path planning, parameter control, and process monitoring. This reduces manual intervention and ensures consistent cleaning quality. Thanks to its strong adaptability, laser cleaning can handle tire molds made of different materials and with various structures, making it especially suitable for deep cleaning of complex patterns and fine details.

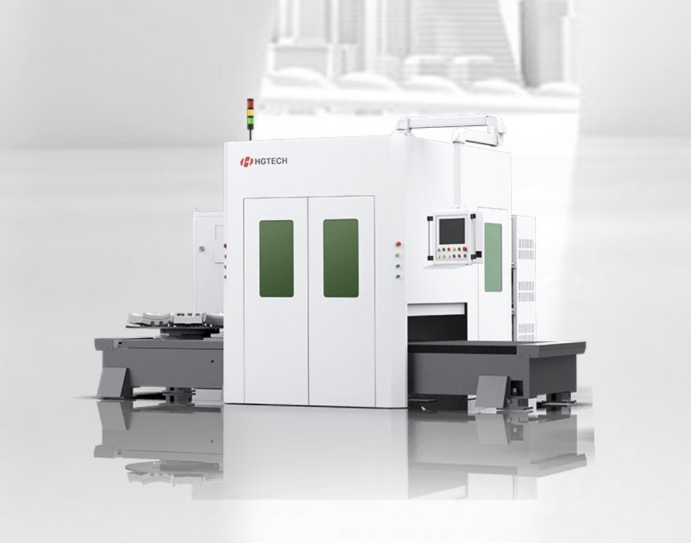

The Tire Mold Offline Intelligent Laser Cleaning Equipment launched by HGTECH adopts an independent enclosed cleaning workstation design and is equipped with a duplex in-and-out shift platform. The mold does not need to be disassembled or separated; full-circumference, dead-angle-free cleaning of the inner cavity can be completed with a single setup. The system integrates 2D/3D machine vision and a five-axis cleaning head, enabling automatic mold recognition and precise cleaning path planning. Fine structures such as tread patterns and grooves are thoroughly covered, delivering a fully automated, one-button-start intelligent cleaning process. Its non-contact cleaning process does not damage the mold substrate or affect dimensional accuracy, effectively extending mold service life and making it ideal for centralized maintenance of large batches of tire molds.

Future Trends and Industry Outlook for Laser Cleaning

As tire manufacturing continues to evolve toward greater intelligence and automation, laser cleaning technology will be further integrated with intelligent manufacturing systems to achieve more efficient and stable cleaning solutions. With its comprehensive advantages in efficiency, environmental performance, and quality control, tire mold laser cleaning technology is expected to accelerate adoption across the industry and play an increasingly important role in more high-precision cleaning applications, driving manufacturing toward a greener, more efficient, and smarter future.
