Injection Hole Welding

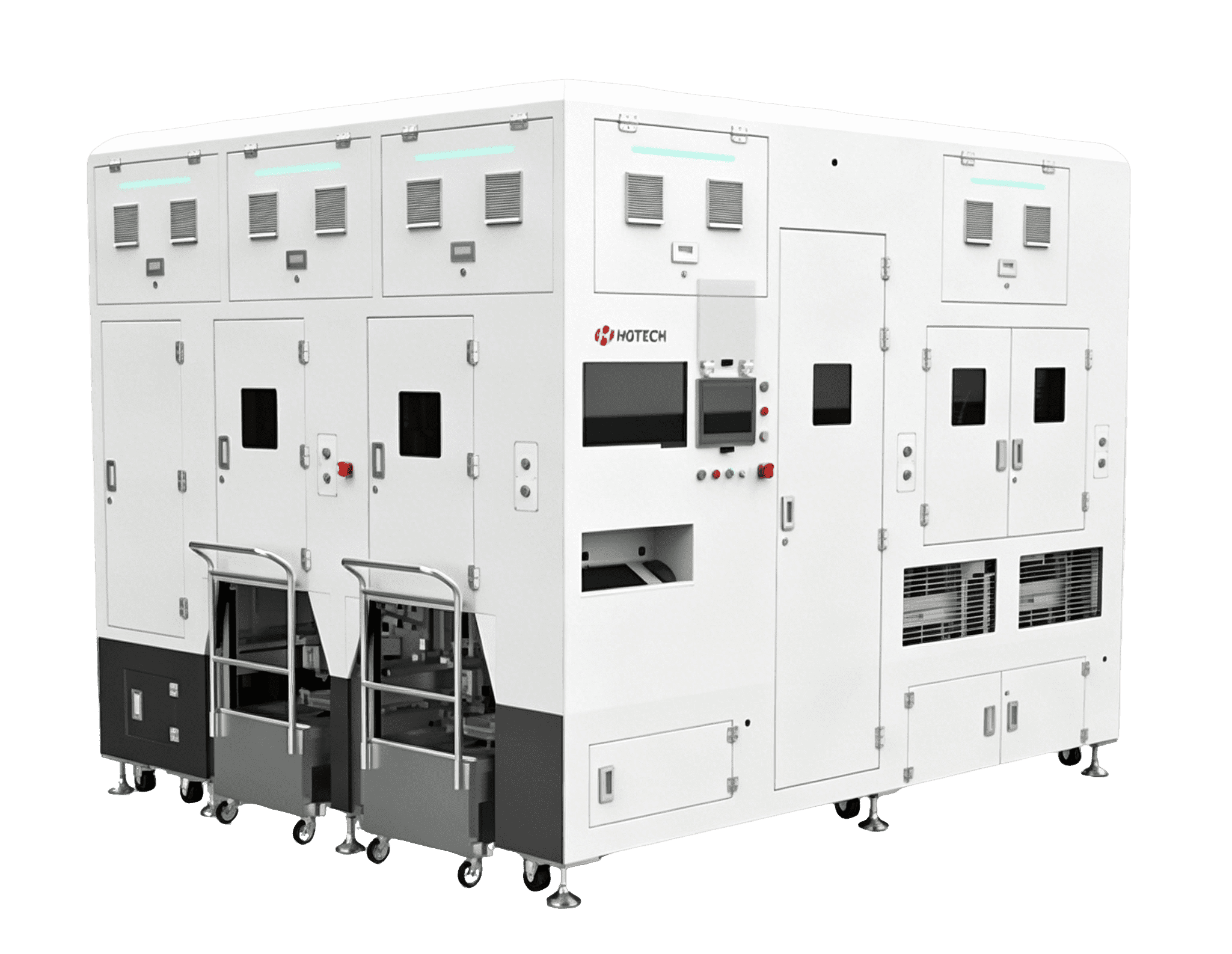

LIQUID INJECTION HOLE WELDING EQUIPMENT
It is used for automatic nail welding of steel-cased lithium-ion battery cells; it mainly consists of a loading system, a transit system, a turntable clamping system, a wiping system, a CCD correction, positioning and inspection system, a nail feeding system, a laser welding system, a discharging system, a cooling system and a dust removal system.

Product Data

  • Uniqueness: Fully automatic nail welding machine with machine feeding, nail loading and unloading, with CCD correction, positioning and detection, and alternating operation of the 4 clamps on the DD cobbled turntable
  • High stability: 7*24H long-lasting platform stability
  • High production efficiency: single jig, double line welding, single machine ppm ≥20
  • Safety and environmental protection: no waste water discharge issues
  • High Compatibility: meet the needs of customers with different product sizes and production lines changes

ITEM

PARAMETERS





Laser system

Laser source

Single Mode Fiber, λ=1059-1065nm

Power

70W

Working size

78mmX78mm

Light spot size

6-9mm



Equipment

performance

PPM

20

Optimal rate

99%

Activation

97%

Control options

PLC+touch screen+MES



Operational

environment

Power supply

220V/50HZ

Gas supply

0.5-0.7Mpa

Size

3000mm*2600mm*2600mm

Weight

4500KG
