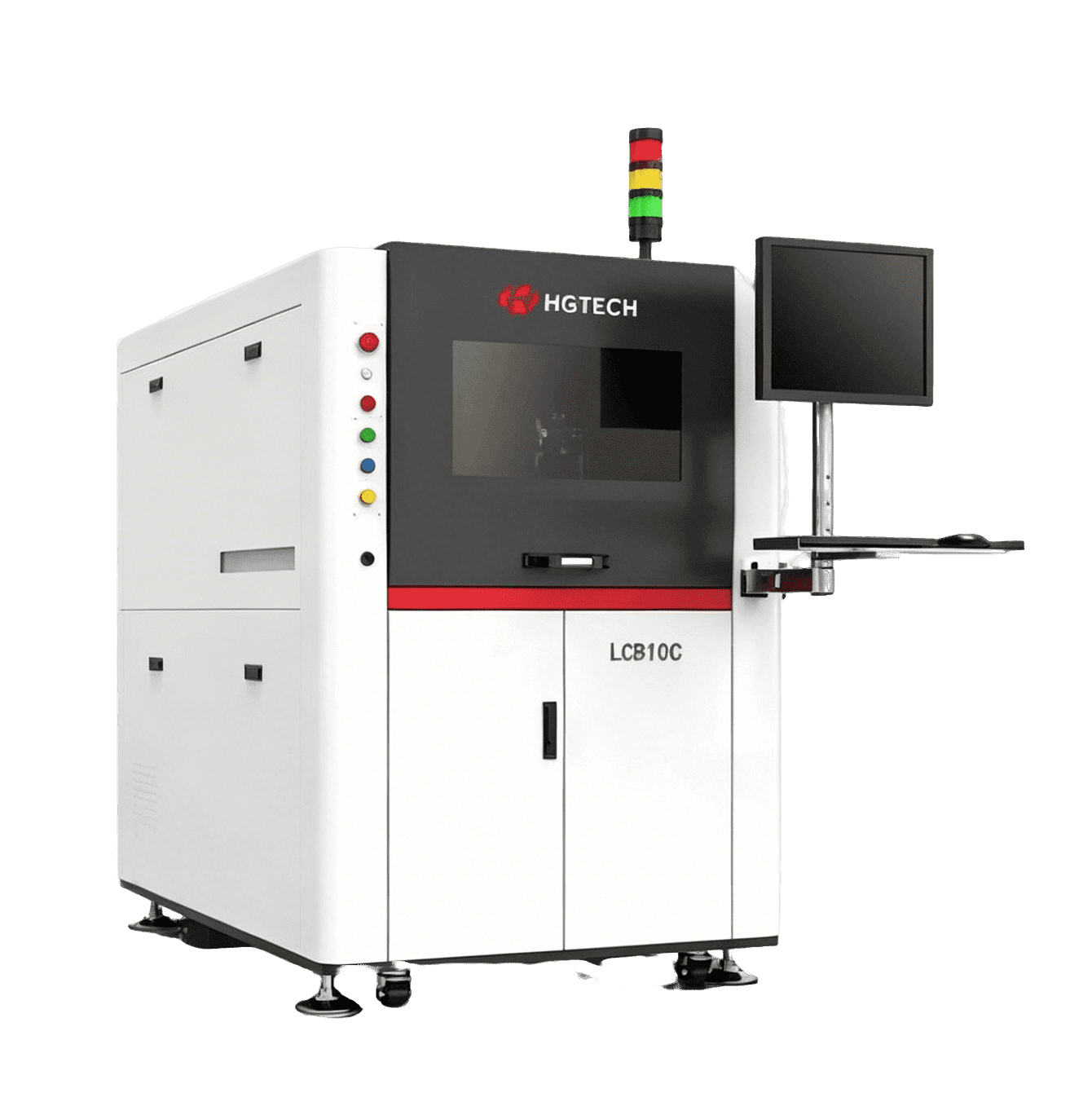

SMT Double Head PCB Laser Marking Machine
SMT Double Head PCB Laser Marking Series
Applicable to PCBA production line, offline/online mode can be selected according to needs,automatic laser coding and reading detection can be realized through the precise positioning of equipment automatic transmission system and industrial vision system, and the process control of PCBA enterprises in the production process can be realized.

Product Data


Applicable to PCBA production line, offline/online mode can be selected according to needs,automatic laser coding and reading detection can be realized through the precise positioning of equipment automatic transmission system and industrial vision system, and the process control of PCBA enterprises in the production process can be realized.

Equipment characteristics



  • Selection of world-class lasers with good beam quality, small heat affected area and high degree of refinement

  • The coding function can support various general types of one dimensional codes and two-dimensional codes, and can realize self-built online ratings, with a code reading rate of over 99.9%

  • Self-developed puzzle software, friendly interface and easy to operate

  • With different lasers, it is compatible with automatic marking of different materials such as green oil, white oil, black oil and metal shielding cover on PCB/FPC board

  • Possess industry standard Bad Mark function, which can realize bad board skip or X board marking

  • There are multiple processing methods such as single head/double head and double track for flexible selection

  • Can be connected to MES system to realizedata intercommunication and data anti-duplication functions

  • The automatic track width adjustment function easily adapts to the processingrequirements of various format products

  • The equipment has a compact structure, small size, and easy to be embedded invarious SMT production lines
  Item Main technical parameters
Laser system Laser source Co2 Fiber UV Green
Laser wavelength 10.6um 1064nm 355nm 532nm
Average output power 5W/10W/20W
Processing performance Circuit board size 50×50-510×460(mm)
Circuit board thickness 0-5mm(0-0.8mm Carrier required)
Repeat positioning accuracy ±0.1mm(CCD positioning)
Minimum width 0.1mm(DETAILED depending on material may be)
Minimum characters 0.5mm(DETAILED depending on material may be)
Support barcode type Code128/Code39 one-dimensional code
DataMatrix/QR two-dimensional code
Into the plate directions Left to right/Right to left
Use environment Power supply specifications 220V/50Hz/2.5KVA
Air supply specifications 0.5-0.7MP
Environmental requirements Temperature 15-30℃/Humidity<50%
Overall size 1000mm(W)×1600mm(L)×1500mm(H)
