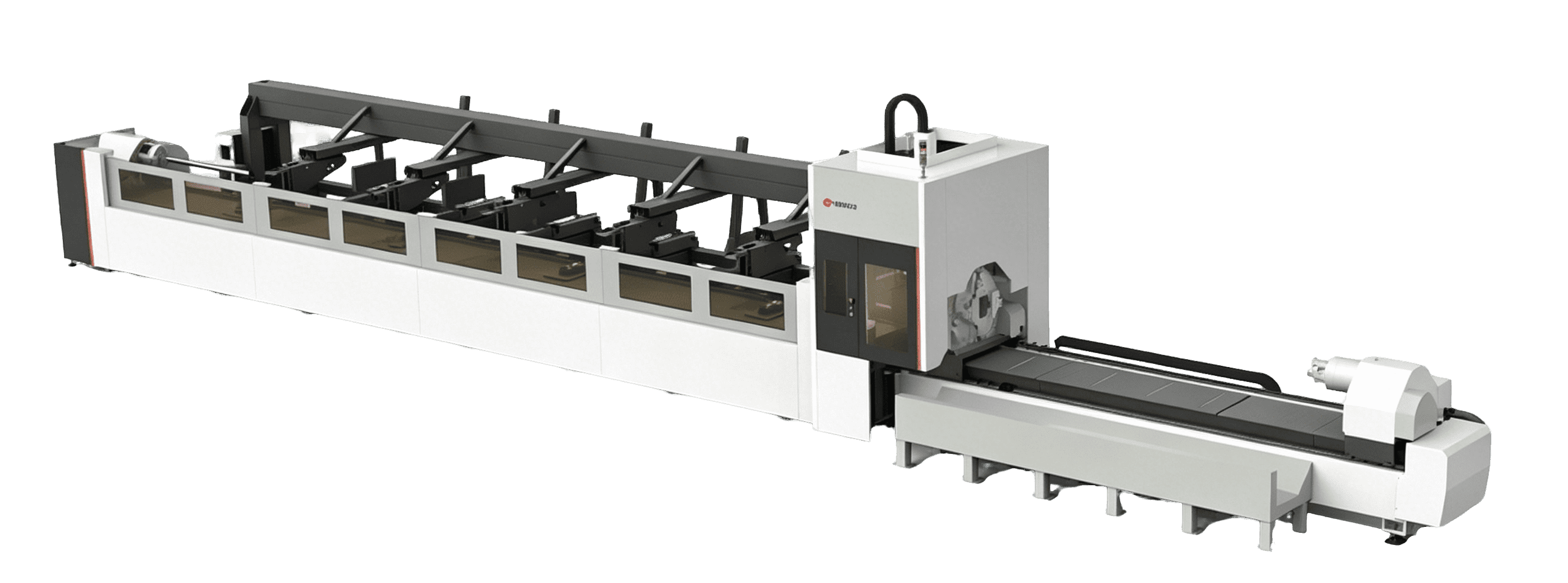

TP10032W<10032W 3 chucks (horizontal) laser tube cutting machine integrates CNC technology, laser cutting, and precision machinery into one, with good adaptability. It has great advantages for medium and heavy tube processing. It is mainly used for cutting of carbon steel tube, stainless steel tube, aluminum alloy tube (square tube, round tube, OB tube, sectional materials) and other tubes. It is the first choice for noncontact metal tube processing industry because of its professionalism, efficiency, high cost performance.
It is widely used in petroleum tubeline, bus manufacturing, construction machinery, shelves and container, agricultural and forestry machinery, ladder and guardrail, laser processing services and other machine manufacturing or tube processing industry.
TP10032W<10032W 3 chucks (horizontal) laser tube cutting machine integrates CNC technology, laser cutting, and precision machinery into one, with good adaptability. It has great advantages for medium and heavy tube processing. It is mainly used for cutting of carbon steel tube, stainless steel tube, aluminum alloy tube (square tube, round tube, OB tube, sectional materials) and other tubes. It is the first choice for noncontact metal tube processing industry because of its professionalism, efficiency, high cost performance.
It is widely used in petroleum tubeline, bus manufacturing, construction machinery, shelves and container, agricultural and forestry machinery, ladder and guardrail, laser processing services and other machine manufacturing or tube processing industry.
Extensibility：Super large HMI interactive interface , with multi functions such as process database, gra phic display, automatic fixture control, program quick editing and modification etc.
Precision：3-chucks linkage cutting, large cutting load, high precision, can achieve zero tailing cutting
Efficiency：Equipped with a fully automatic bundling and loading system, with high automatic production efficiency.
Safety：The machine tool is equipped with fully enclosed machine tool cover, the overall safety protection of the machine tool meets the highest international standards.
Flexibility：Modular design, can be customized according to customer requirements.
Phase Number/ Power Supply Rating/ Voltage Frequency
3/380V/50Hz, Voltage Fluctuation<10%
Working Air Source
0.5-0.8MPa
Processing Area
Working Area (machine tool)
Y 0-11000mm
X 0-300mm
Z 0-180mm
C1/C2 Axis
n*360°
Positioning Accuracy
X/Y Positioning Accuracy
±0.05mm/500mm
X/Y Repeat Positioning Accuracy
±0.05mm
Remark:
1. If the material is covered with a PVC protective film, it must be removed. With PVC protective film will not only lead to poor processing, but also make the machinery corroded and does harm tn human heath due to the production of chlorine gas.
2. The diameter of chuck indicates the maximum section of the round tube that can be processed is Φ320mm. For other profiles (H steel, I steel, L steel etc.) or selectional materials with non-standard section, please confirm with HGLaser technicians.
