It is a kind of laser processing equipment specially developed for automobile hot forming parts. It mainly solves the problem of cutting holes and trimming of hot forming parts. It is characterized by high precision, fast speed and good dynamic performance.

Product Data

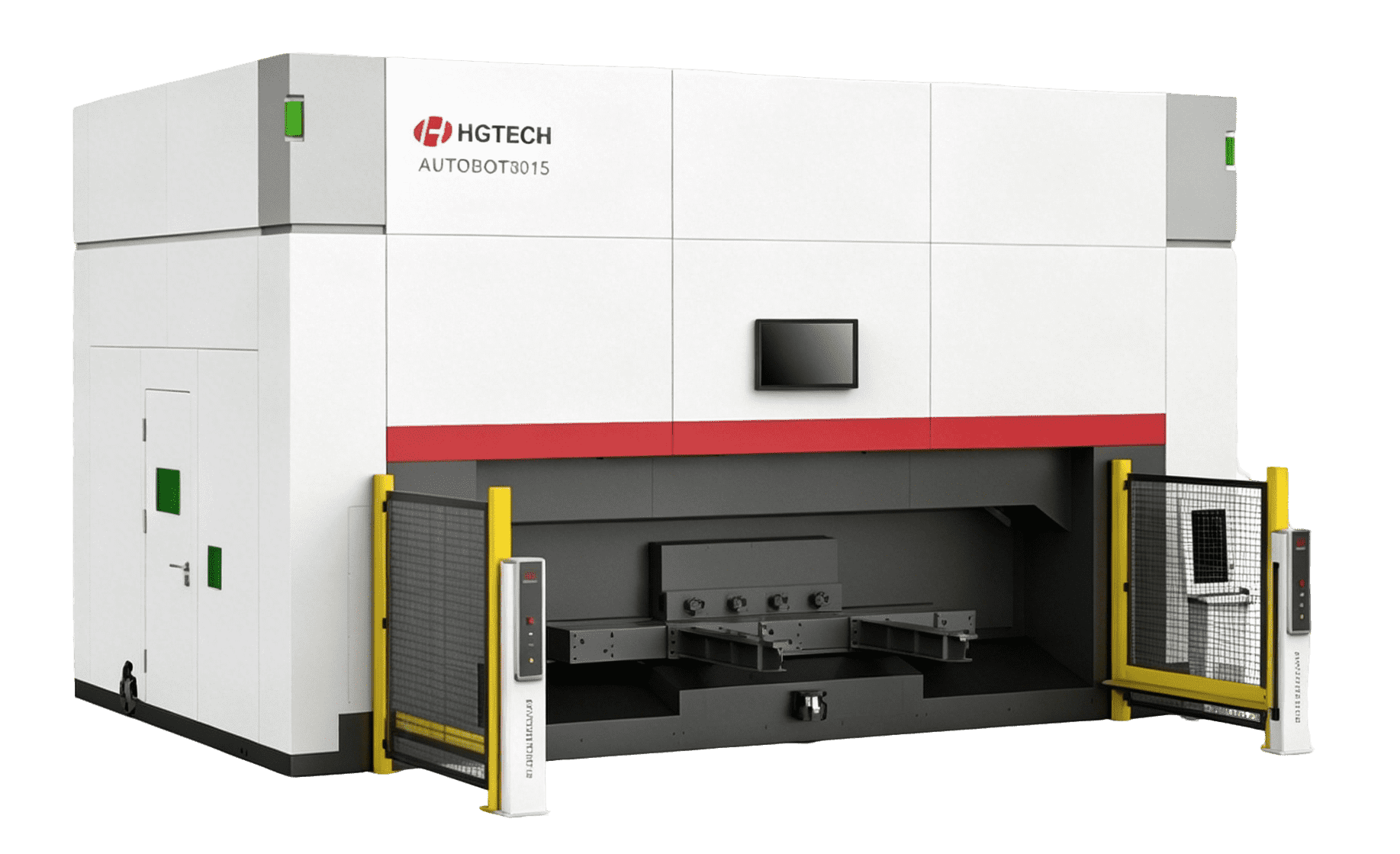

AUTOBOT3015 auto thermal forming parts 3D laser cutting machine is a kind of 3D 5 axis laser manufacture equipment developed specially for auto thermal forming section. It mainly solves the problems of hole cutting and trimming of thermal formed parts. It is characterized by high precision, fast speed, good dynamic performance, low use cost, simple operation and maintenance, and is suitable for batch production.













Extended Functions



Welding Head Module

The 3D 5-Axis welding head is a functional extension of the 3D 5-Axis fibre cutting head. Without replacing the laser and the guiding fibre, the follower module on the cutting head can be replaced with a welding module to complete the transition from 3D cutting to 3D welding, enabling laser welding of 3D parts for general functional needs such as stitching and stack welding. The materials rocessed include carbon steel, stainless steel, aluminium alloys, titanium alloys, Sawyer alloys, etc.

Intelligent Laser Cutting Management System

Intelligent laser cutting management system is launched for laser cutting site management can achieve real-time monitoring of laser cutting machine status, cutting data statistical analysis, data storage, fault warranty, maintenance alarm management, historical data query analysis of a comprehensive laser cutting machine management system. It improves the competitiveness of products and helps users to reduce costs and increase efficiency.

Visual Inspection Unit

It solves difficult problems such as missed holes, uncut through, incoming quality defects, inaccurate positioning of parts, etc. It is automated, intelligent, visualised and highly efficient.

Automatic Materials Stock Unit

When cutting flat sheets, the 3D unit can automatically store and transfer the sheets, automatically enter and exit, automatically pick up and load the cutting material, automatically store the finished material after cutting, and automatically collect the scrap.

Automatic Materials Stock Unit

Robotic loading and unloading solutions can be provided according to product characteristics and customer requirements. It is a powerful guarantee for efficient and safe production by improving efficiency and saving manpower.

Welding Head Module

The 3D 5-Axis welding head is a functional extension of the 3D 5-Axis fibre cutting head. Without replacing the laser and the guiding fibre, the follower module on the cutting head can be replaced with a welding module to complete the transition from 3D cutting to 3D welding, enabling laser welding of 3D parts for general functional needs such as stitching and stack welding. The materials rocessed include carbon steel, stainless steel, aluminium alloys, titanium alloys, Sawyer alloys, etc.



Intelligent Laser Cutting Management System

Intelligent laser cutting management system is launched for laser cutting site management can achieve real-time monitoring of laser cutting machine status, cutting data statistical analysis, data storage, fault warranty, maintenance alarm management, historical data query analysis of a comprehensive laser cutting machine management system. It improves the competitiveness of products and helps users to reduce costs and increase efficiency.



Visual Inspection Unit

It solves difficult problems such as missed holes, uncut through, incoming quality defects, inaccurate positioning of parts, etc. It is automated, intelligent, visualised and highly efficient.



Automatic Materials Stock Unit

When cutting flat sheets, the 3D unit can automatically store and transfer the sheets, automatically enter and exit, automatically pick up and load the cutting material, automatically store the finished material after cutting, and automatically collect the scrap.



Automatic Materials Stock Unit

Robotic loading and unloading solutions can be provided according to product characteristics and customer requirements. It is a powerful guarantee for efficient and safe production by improving efficiency and saving manpower.







Industry Cases

Industry Background

The application of thermoforming technology can reduce the body mass, improve fuel economy, and achieve energy saving and emission reduction. High-strength steel, with its high hardness, high toughness and high wear resistance, is widely used in the field of automotive thermoforming.China's first set of 3D Five-Axis laser cutting machine for high-strength steel thermoforming parts - AUTOBOT solves the problem of difficult punching of high-strength steel, replacing a large number of punching and trimming dies.

The machine can cut automotive thermoformed parts 24 hours a day, and can produce up to 1,000 pieces of B-pillars for this model in one day. It is equipped with high-speed rotary worktable and a new generation of independently developed high-performance cutting head, it can meet the production rhythm requirements of the automobile hot forming industry to the greatest extent.

Industry Achievements

  1. 1. In April 2018, the equipment was awarded the first prize of Hubei Provincial Science and Technology Progress.
  2. 2. In October 2022, the 3D Five-Axis laser cutting intelligent equipment of Huagong Technology's intelligent manufacturing business ushered in the delivery of breaking 200 units in the thermoforming industry.
  3. 3. With the third generation of self-developed lightweight 3D Five-Axis cutting head, the market share steadily ranks the first in China.
MODEL AUTOBOT3015
Wokring Range Work Table
Working Range (Length * Width) 3000mm * 1500mm   Rotation diameter: 4000mm
X-AXIS 3000mm Rotation Work Table Side max. load: 400kg
Y-Axis 1500mm   Min shifting time: <2.3s
Z-Axis 680mm Power
A-Axis ±135° Phase No. 3
C-Axis ±n*360° Rated Voltage 380V
Accuracy   Frequency 50Hz
X/Y/Z Axis Position Accuracy 0.08mm Protection Level IP54
X/Y/Z Axis Repeat Accuracy 0.03mm Weight & Size
A/C Axis Position Deviation 0.015° Net Weight <16000kg
A/C Repeat Accuracy 0.005° Space Size (Length * Width * Height) 8500 * 7600 * 4200mm
Speed
X/Y/Z Axis Max Speed 100 m/min A/C Axis Simultaneous Max Acceleration 60 rad/s2
A/C Axis Max Speed 540 °/s Dynamic Axis Range +12.5mm
X/Y/Z Axis Simultaneous Max Acceleration 10 m/s2
