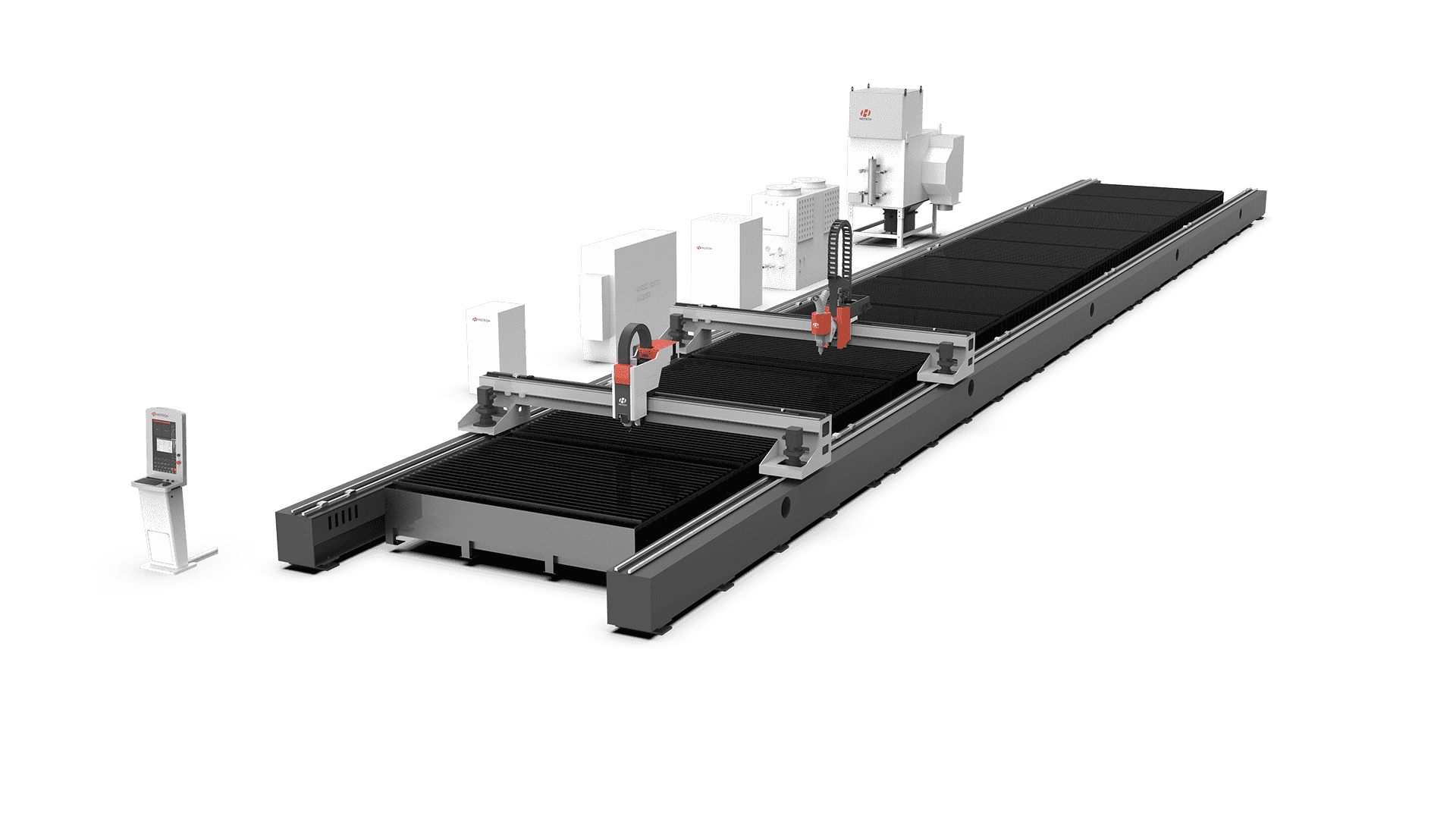

Large-format 3D Five-axis Cutting 1kW-12kW

WALC Series

Large-format 3D Five-axis Cutting 1kW-12kW
Large-format 3D Five-axis Cutting 1kW-12kW
Large-format 3D Five-axis Cutting 1kW-12kW
High-speed High-precision Stability ask price
For the super-size sheet for efficient cutting, batch used in construction machinery, shipbuilding, rail transit industry, etc. And based on the market demand of large quantity of medium and thick plate groove, we independently developed the large-area five-axis groove cutting equipment on the high-speed and high-precision Siemens system.

Product Data



WALC and bevel laser cutting product series have the characteristics of ultra-high power, ultra-large-format (processing format can be customized) high-speed, high-precision, high-stability, and can be used for bevel cutting. This product has good openness and is easy to access the production line and production management system. It is widely used in construction machinery, ships and automobile manufacturing, bridge steel towers and other industries to solve the needs of one-time cutting and bevel cutting of super large plates and workpieces.

Lightweight design

Lightweight
Design

Customizable size

Customizable
Size

Integrated differentiated dust removal

Integrated
Differentiated
Dust removal

Box beam modular bed

Box beam
Modular bed

Segmented design

Segmented
Design



Product Benefits

Lighweight beam, high efficiency work

Lighweight beam,
High efficiency work

With a maximum acceleration of 1G and a maximum speed of 80m/min in a single axis, the machine can achieve higher acceleration and speed.

Smooth and flat cutting surface,
Achieving any shape of bevel cutting at will

Smooth and flat cutting surface, Achieving any shape of bevel cutting at will

Reduce the process, allowing for a maximum 45-degree range of different shapes and bevel angles at one time. Reduce material waste and operating costs.

Energy saving and consumption reduction,
offering greater economic and environmental benefits.

Energy saving and consumption reduction, More economic and environmental protection

  • Box beams are designed in a modular,segmented format to minimize material usage
  • Lightweight bed allows for easy installation and significant time savings
  • Integrated air extraction, more space-efficient setup and highly effective dust removal



Samples





Industry Application



Bridge Manufacturing

Bridge
Manufacturing

Steel Tower

Steel
Tower

Automobile Manufacturer

Automobile
Manufacturer

Shipbuilding

Shipbuilding

Construction Machinery

Construction
Machinery







MODEL WALC 8030 WALC 1235 WALC 1830P WALC 2535P
Laser Power 6000 - 30000 W
Control System SIMENS 840D SL, FARLEY
Vertical Cutting Sheet metal: 2D cutting and marking
Bevel Cutting CS SS AL: V/Y/X/K bevel cutting within ±45 degrees
Processing Capability
Cutting Thickness: CS(O2) Vertically cut MAX: 60mm Vertically cut MAX: 60mm Bevel cutting MAX: 30mm
Cutting Thickness: SS(N2) Vertically cut MAX: 60mm Vertically cut MAX: 60mm Bevel cutting MAX: 25mm
Cutting Thickness: AL(N2) Vertically cut MAX: 60mm Vertically cut MAX: 60mm Bevel cutting MAX: 20mm
Processing Format And Working Range
Processing Width 8000 * 3000mm 12000 * 3500mm 18000 * 3000mm 25000 * 3500mm
K-bevel Processing Width NA 17000 * 2500mm 24000 * 3000mm
Route of X-axis 8100mm 12100mm 18100mm 25100mm
Route of Y-axis 3050mm 3550mm 3050mm 3550mm
Route of Z-axis 150mm 150mm 300mm 300mm
Accuracy
Positioning accuracy of X axis 0.1mm/10m (≤10m), 0.2mm/full length
Positioning accuracy of Y axis 0.05mm
Repeated Positioning accuracy of X axis 0.05mm/10m (≤10m), 0.1mm/full length
Positioning accuracy of X axis 0.03mm
Velocity
Max Acceleration 1G
X/Y Axis Max Positioning Speed 60m/min
X/Y Axis Max Positioning Con-speed 84m/min
