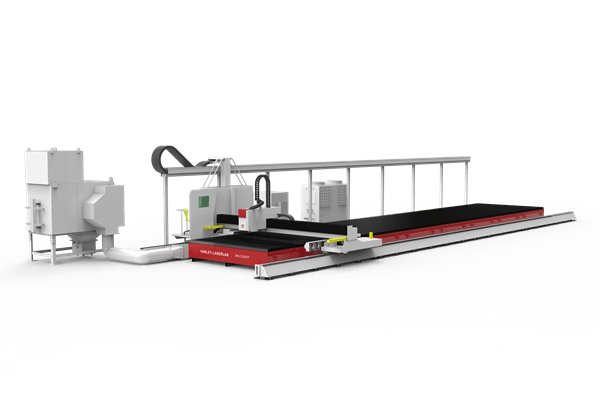

Fully Enclosed Bevel Laser Cutting Machine
BF Series
Exchanging Workbench BF Series fully enclosed bevel laser cutting machine is mainly a processing equipment used for bevel cutting needs of thin special steel and stainless steel in automobile manufacturing,medical machinery and other industries.lt adopts a fully enclosed exchanging table structure, which has the characteristics of high speed.high precision and safety.

Product Data

BF series

Fully Enclosed Bevel Laser Cutting Machine



Exchanging Workbench BF Series fully enclosed bevel laser cutting machine is mainly a processing equipment used for bevel cutting needs of thin special steel and stainless steel in automobile manufacturing,medical machinery and other industries.lt adopts a fully enclosed exchanging table structure, which has the characteristics of high speed.high precision and safety.



High Efficiency

With high dynamic performance, high running speed,loading and unloading through exchanging table ,high processing speed;

High Precision

Bevel cutting angle error ± 1° ,accuracy error ± 1 mm;

Safety

Fully enclosed structure, preventing high-speed transmission parts and laser radiation from harming the human body.



Integral welded structure bed : the beam is processed by multiple ageing treatments, and has high dynamic response. It is equipped with high-precision and high-efficiency structure system in transmission part, which has good rigidity and high precision, ensuring long-term high-precision operation of the equipment.

Independent R&D Fiber laser machine : Strong cutting and high efficiency, special laser cutting control system cooperatively developed with CNC system, which is a high-end high-tech fiber laser bevel cutting machine integrating laser cutting, precision machinery, CNC technology and other advanced technologies.







Industry Application

Bridge Manufacturing

Bridge
Manufacturing

Steel Tower

Steel
Tower

Automobile Manufacturer

Automobile
Manufacturer

Shipbuilding

Shipbuilding

Construction Machinery

Construction
Machinery



Technical Parameters:

Project Main Parametrs
Basic Specification Laser Power 6000-30000W
Focal Length F200 ~ F300mm automatic focus
Operating System Windows 10(Chinese and English)
CNC System FARLEY-A, FARLEY-H
Display System 23.6-inch touch display (mouse operation supported)
Machining Range Vertical Cutting Metal material arbitary shape workpiece cutting, marking, etc.
Machining Range Bevel Cutting Carbon steel/stainless steel/aluminum sheet V/Y/X/K bevel cutting ±45°
Processing Capability Carbon Steel Plate Cutting Thickness(O2) Vertically cut MAX 50mm Bevel cut MAX 25mm
Stainless Steel Plate Cutting Thickness(N2) Vertically cut MAX 50mm Bevel cut MAX 16mm
Aluminum Steel Plate Cutting Thickness(N2) Vertically cut MAX 100mm Bevel cut MAX 20mm
Processing Stroke X Axis Stroke MAX 28m(cutomizable)
Y Axis Stroke MAX 4m(cutomizable)
Z Axis Stroke 300mm
Processing Accuracy X Axis Positioning Accuracy 0.1mm/10m(≤10m),0.2mm/full length
YX Axis Positioning Accuracy 0.05mm
X Axis Repeated Positioning Accuracy 0.05mm/10m(≤10m),0.1mm/full length
Y Axis Repeated Positioning Accuracy 0.03mm
Processing Speed Maximum Acceleration 1.0G
X/Y Axis Maximum Positioning Speed 80m/min
X/Y Axis Maximum Linkage Positioning Speed 110m/min
Power Number of Phases 3
Rated Voltage 380V
Frequency 50Hz
Total Power Supply Protection Level IP54
