3D 5-Axis Welding And Cutting
SF Series

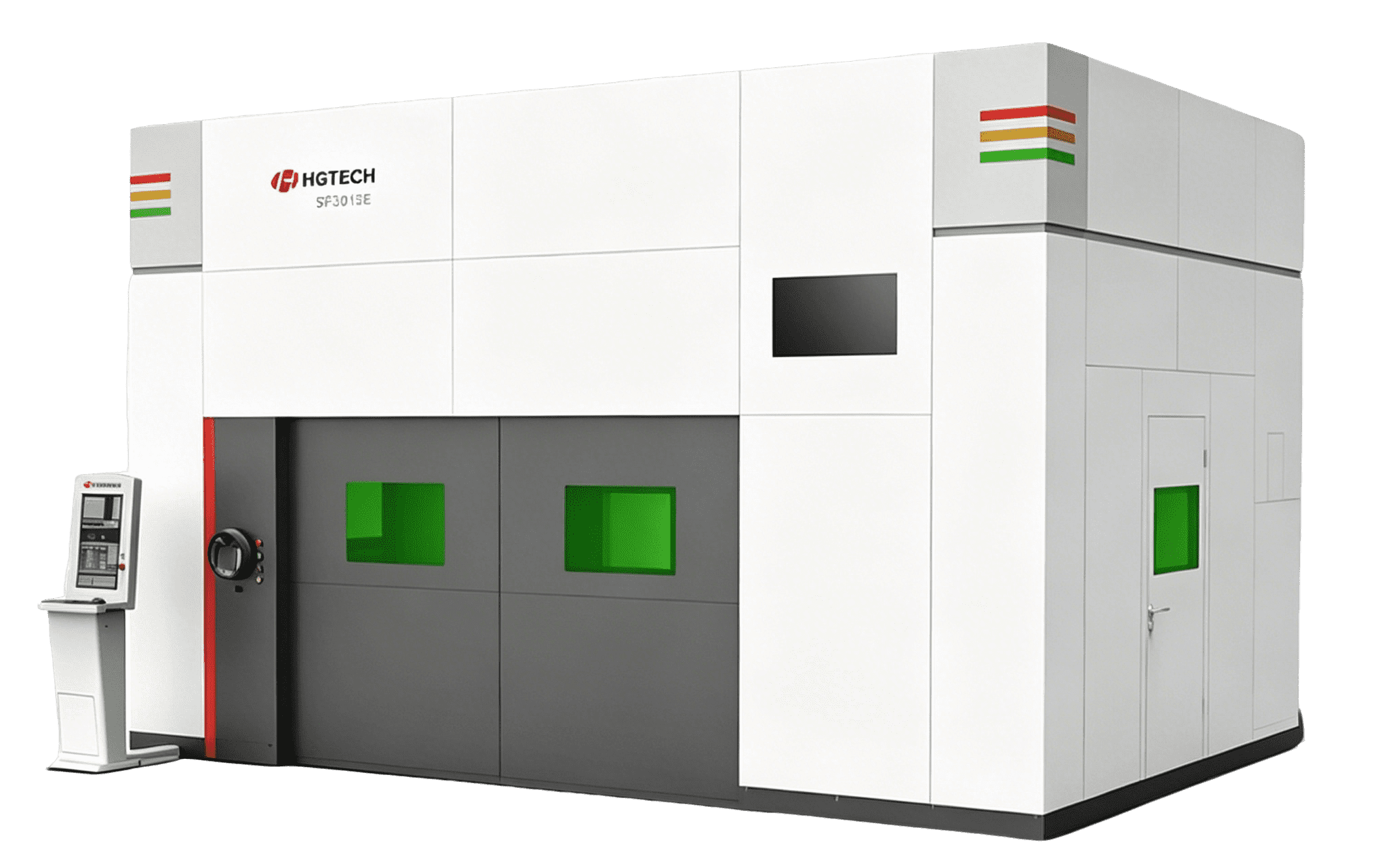

The SF series of 3D five-axis laser cutting machines are designed for customers in the automotive, mould, home appliance, engineering machinery, hardware, medical equipment, fitness equipment and other fields. They are characterised by high precision, high speed, low cost of ownership, simple operation and maintenance, and can meet the needs of different production schedules.

Product Data

Product Description



The 3D 5-Axis laser machine series is characterized by high precision, high speed, high efficiency, high stability, leading technology in the world, compact structure, simple operation and easy maintenance. The products are widely used in automotive, mould, household appliances, engineering machinery, ships, hardware, medical equipment, fitness equipment and other fields to meet the requirements of various metal workpiece surface cutting and trimming.

  • Compared with robot 3d cutting, it has fast speed and high precision;
  • Compared with the traditional CARBON dioxide laser cutting machine, the use cost is low, the operation is simple, the maintenance is convenient.


Technical Advantages

  • Extensibility

In addition to 3D cutting of workpieces, the machine can also be used for flat cutting and can be equipped with welding modules for welding functions to meet different customer needs.

  • Stability

The double-drive gantry structure provides high stability and guarantees long-term high-speed, high-precision and stable cutting。

  • Safety

The machine is equipped with a fully sealed laser protection room, with a light curtain to ensure the safety of personnel in the working table area, and the overall safety protection of the machine complies with CE international safety standards.

  • Economical

Working width: X-axis 3000~6000mm, Y-axis 1500~4500mm, Z-axis 680~1500mm, etc.The table is available in rotary, translating or fixed versions





Extended Functions



























Industry Cases



  • In October 2022, the 3D Five-Axis laser cutting intelligent equipment of HGTECH's intelligent manufacturing business ushered in the delivery of breaking 200 units in the thermoforming industry.
  • With the third generation of self-developed lightweight 3D Five-Axis cutting head, the market share steadily ranks the first in China.



program

main parameters

mode

SF3015

SF3020

SF4020

SF4025

SF6020

SF6025

lasersource    power





2000~6000W





X axis

3000mm

3000mm

4000mm

4000mm

6000mm

6000mm

Y axis

1500mm

2000mm

2000mm

2500mm

2000mm

2500mm

Z axis

680mm/800mm/1000mm/1200mm/1500mm

each axis

A-axis travel ( swing axis )

±135°

C-axis travel ( rotary axis )

nx360

U-axis travel (floating axis)

±12.5mm

X/Y/Z axis positioning accuracy

±0.03m

accuracy

Repeatable positioning accuracy of X/Y/Z axis

±0.02mm

Positioning accuracy of A/C axis

0.015°

RE Positioning accuracy of A/C axis

0.005°

X/Y/ Z maximum positioning speed

50m/min~100m/min

speed

Maximum positioning speed of A/C axis

720°/s

X/Y/Z maximum acceleration

0.5G~1.0G

Maximum acceleration on the A/C axis

5400°/s2

phase

3

Power supply parameters

Supply voltage rating

frequency

380V

50Hz

Total power supply protection class

IP54
