TP12052F & LT12052F

4 Chucks (Side Hanging) Heavy-Load Laser Tube Cutting Machine

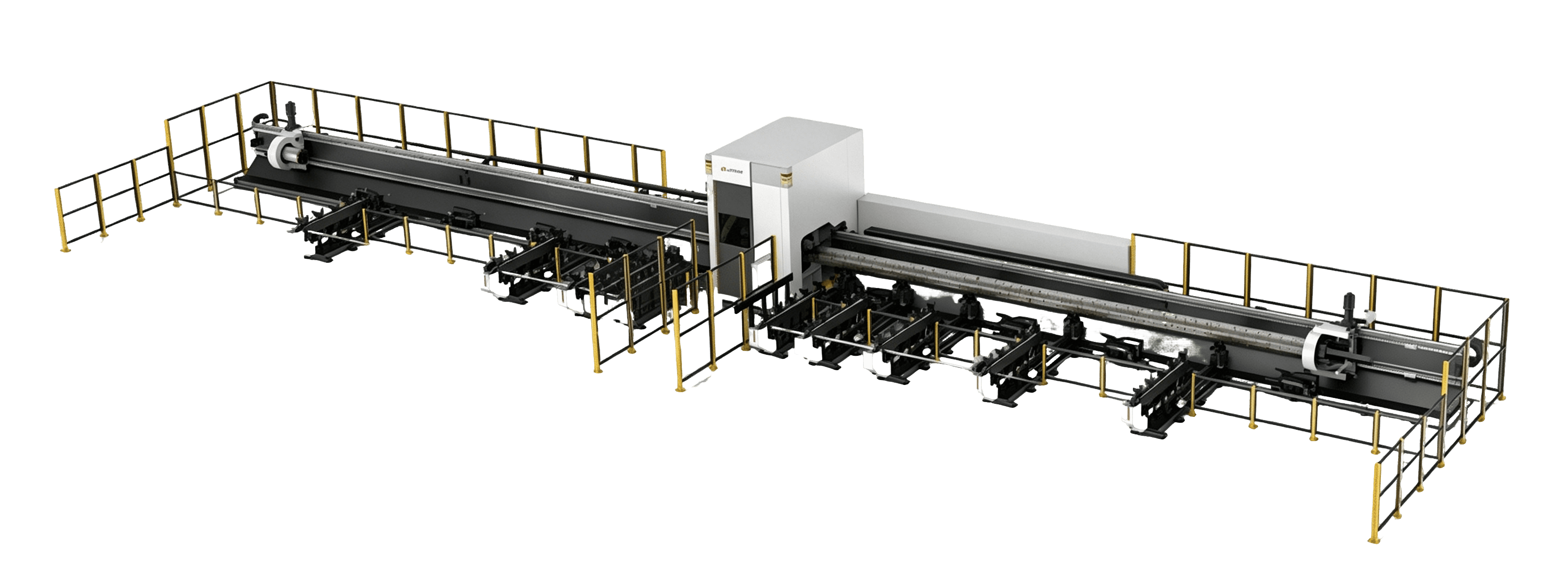

TP12052F / LT12052F 4 chucks (side hanging) heavy-load laser tube cutting machine is a laser cutting processing equipment designed for bridges and ships, engineering machinery, power tower, assembly construction, tunnel traffic and other industries. With a new design concept, it meets customer demand for a variety of metal selectional materials processing, as well as the pursuit of high quality, high precision and high efficiency. A single machine can replace a small factory, bringing revolutionary production changes.
Online booking Documents

Product Consultation

Name *
Company name *
E-mail *
Phone *
Country *
Main Business

Product Features

  • Fully Automatic Servo Control Loading And Unloading System

    It can realize the smooth loading and unloading of heavy pipes with different lengths, sizes and shapes, reduce the scraping between work pieces, seamlessly connect with the equipment, and achieve semi-automatic or fully automatic production with the machine host, so as to shorten the working time and improve the working efficiency.

  • Modular Bed Design

    Our disruptive innovation allows for rapid response to customer needs across various scenarios. The system enables modular, building-block-style configurations of loading, unloading, and cutting beds ranging from 6 to 15 meters, tailored to the customer’s facility size and specific production requirements.

  • Integrated High Rigidity And High Precision Cast Iron Pneumatic Chuck

    With higher cutting accuracy, stability and shock absorption of the machine tool, it can suppress the huge vibration generated by the cutting process of super long and overweight steel pipes and avoid laser cutting defects; The machining accuracy of small holes reaches 0.1mm, which completely solves the problem of non-circular cutting of small holes in heavy pipes.

  • high quality, high precision and high efficiency.

    A single machine can replace a small factory, bringing revolutionary production changes.

  • Product Description

Fully Automatic Servo Control Loading And Unloading System

It can realize the smooth loading and unloading of heavy pipes with different lengths, sizes and shapes, reduce the scraping between work pieces, seamlessly connect with the equipment, and achieve semi-automatic or fully automatic production with the machine host, so as to shorten the working time and improve the working efficiency.

Modular Bed Design

Our disruptive innovation allows for rapid response to customer needs across various scenarios. The system enables modular, building-block-style configurations of loading, unloading, and cutting beds ranging from 6 to 15 meters, tailored to the customer’s facility size and specific production requirements.

Integrated High Rigidity And High Precision Cast Iron Pneumatic Chuck

With higher cutting accuracy, stability and shock absorption of the machine tool, it can suppress the huge vibration generated by the cutting process of super long and overweight steel pipes and avoid laser cutting defects; The machining accuracy of small holes reaches 0.1mm, which completely solves the problem of non-circular cutting of small holes in heavy pipes.

  • Technical Parameters

Item parameters
Model   TP12052F LT12052F
CNC System   FSCUT SIMENS
Specification Power 3000W、6000W、12000W
Size 30m×5.0m×3.6m
Weight Approx.50T
Material Type Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, angle iron, channel steel, H-shaped steel, etc
Diameter Φ20mm-Φ406mm
Loading Capacity 2200mm-12000mm
Unloading Capacity 0-12000mm
Single Tube Max. Weight 125Kg/m (1500Kg)
Operating Parameters Total Power (reference) 180KW
Phase Number/ Power Supply Rating/ Voltage Frequency 3/380V/50Hz, Voltage Fluctuation<10%
Working Air Source 0.5-0.8MPa
Processing Area Working Area (machine tool) Y 0-13000mm
X 0-800mm
Z 0-350mm
C1/C2 Axis n*360°
Positioning Accuracy X/Y Positioning Accuracy ±0.05mm/500mm
X/Y Repeat Positioning Accuracy ±0.05mm
Remark:
1. If the material is covered with a PVC protective film, it must be removed. With PVC protective film will not only lead to poor processing, but also make the machinery corroded and does harm tn human heath due to the production of chlorine gas.
2. The diameter of chuck indicates the maximum section of the round tube that can be processed is Φ508mm, square tube 350mm*350mm. For other profiles (H steel, I steel, L steel etc.) or selectional materials with non-standard section, please confirm with HGLaser technicians.
