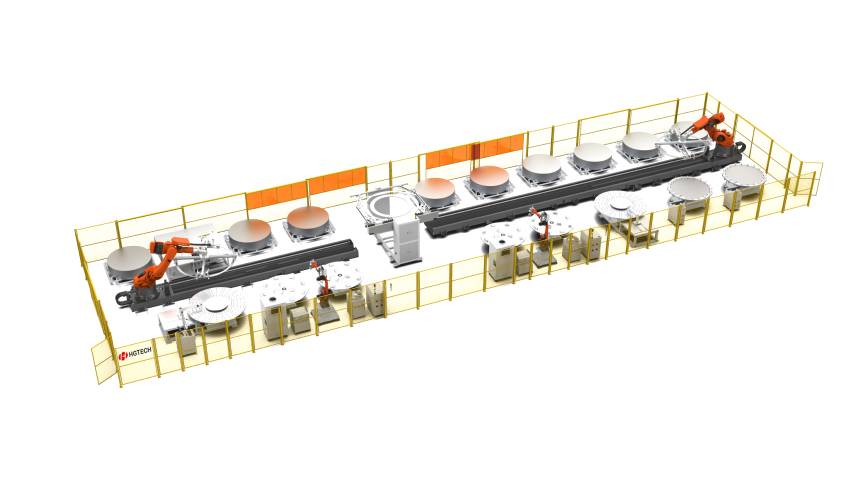

HGTECH Electrode Frame and Plate Automatic Welding Production Line is used for automatic assembly and welding of pole frames + pole plates, weld inspection, flatness inspection, and air tightness inspection of alkaline electrolyzers.

Equipment Features

/ Compatible with flexible production of pole plates of 1.5-2.6m;

/After welding at 1000Nm3/h, the deformation is <= 0.5mm, no need for rolling and flatening process, and the weld forming quality is far ahead;

/ The first to use the weld tracking system to guide robot welding, which can realize real-time following in XYZ three directions to ensure the welding quality of pole plates;

/Innovatively adopt multi-functional magnetic suction tooling. with flat adsorption, and the product changeover time is <2h:

/ Realize online automatic dimension inspection, flatness inspection, and air tightness inspection of pole plates to improve product yield;

/ Welding quality monitoning system, real-time monitoring of the welding quallty of pole plates, and timely alarm when anomalies occur.
