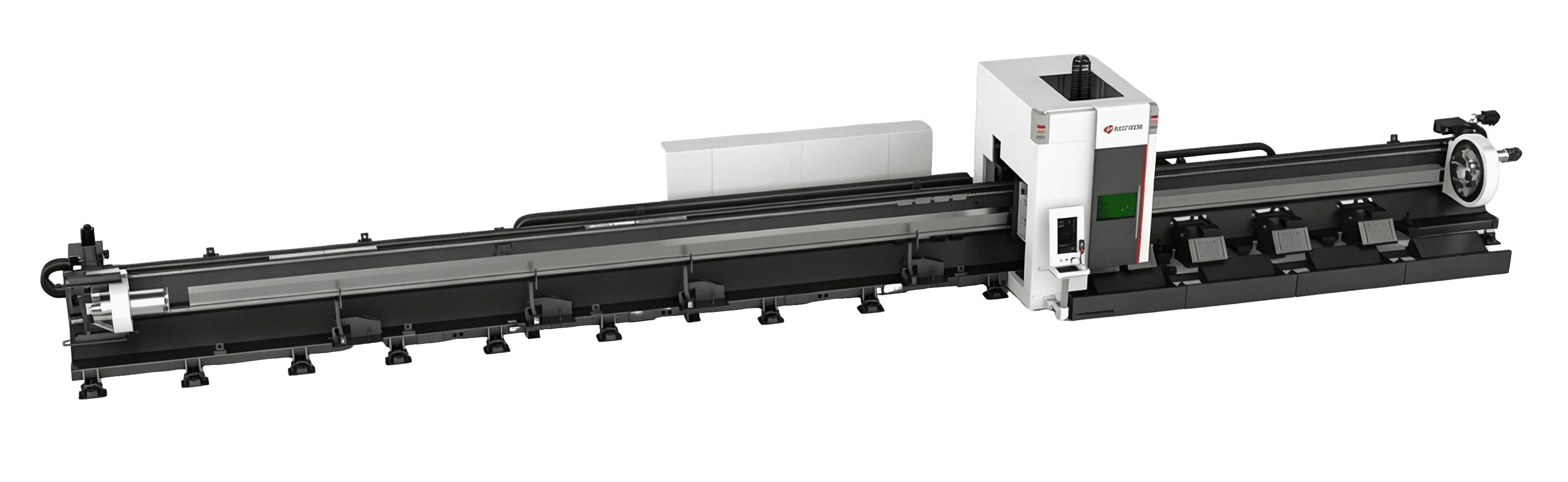

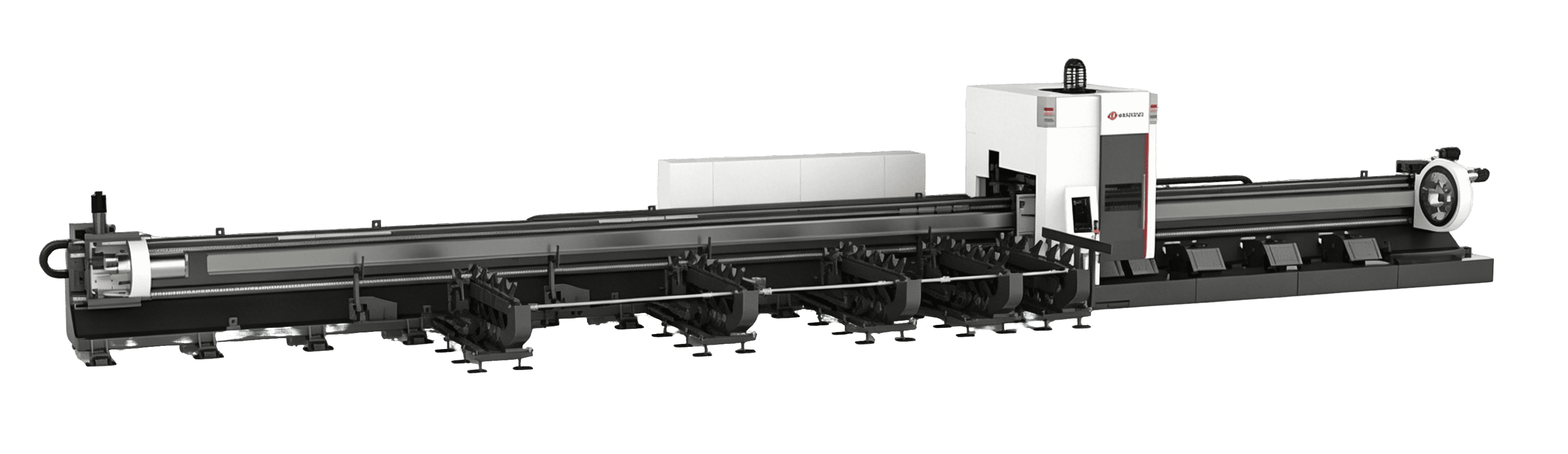

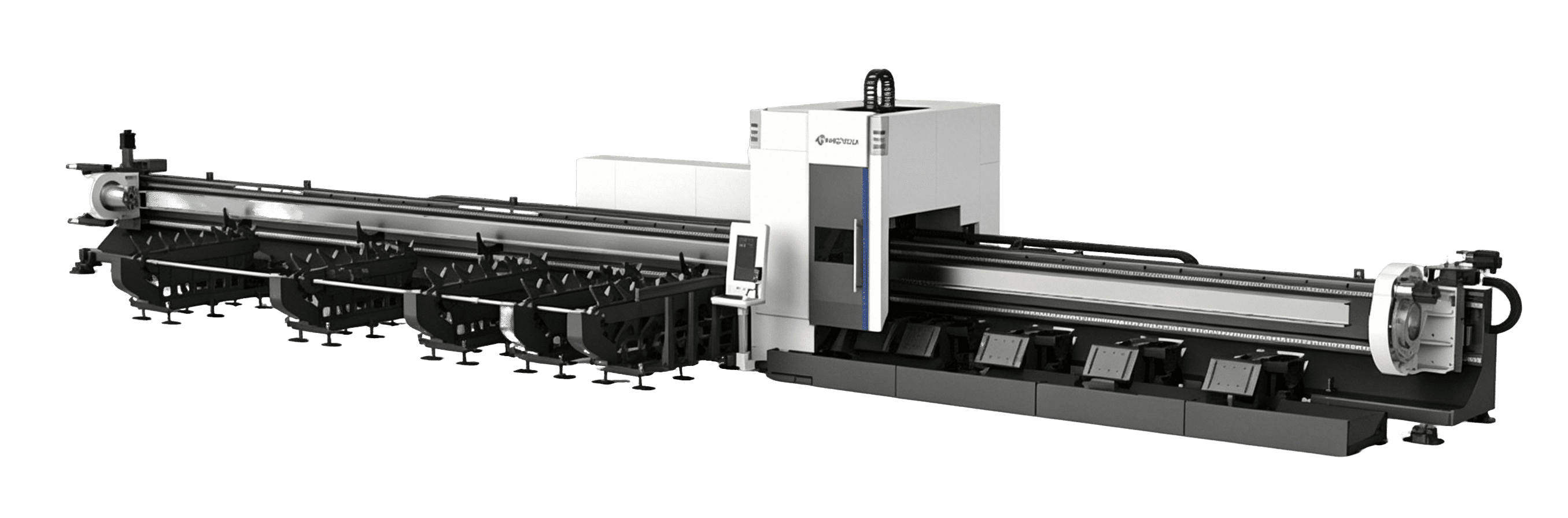

3 Chucks (Side Hanging) Heavy-Load Laser Tube Cutting Machine
TP12036M & LT12036M
TP10036M<10036M 3 chucks (side-hung) heavy-load laser tube cutting machine integrates CNC technology, laser cutting, precision machinery and automatic control. It has high speed, high precision, high efficiency and high economic benefits, and can meet the cutting requirements of ultra-long and ultra-heavy tubes in industries such as bridges and ships, engineering machinery, electric power tower, assembly building, tunnel traffic, etc. It has outstanding advantages for processing of ultra-long and ultra-heavy metal tubes and sectional materials. It has high precision, high speed, good equipment stability, and is convenient to operate, and can realize volume production.

Product Data

TP10036M<10036M 3 chucks (side-hung) heavy-load laser tube cutting machine integrates CNC technology, laser cutting, precision machinery and automatic control. It has high speed, high precision, high efficiency and high economic benefits, and can meet the cutting requirements of ultra-long and ultra-heavy tubes in industries such as bridges and ships, engineering machinery, electric power tower, assembly building, tunnel traffic, etc.

It has outstanding advantages for processing of ultra-long and ultra-heavy metal tubes and sectional materials. It has high precision, high speed, good equipment stability, and is convenient to operate, and can realize volume production.



  • Adaptability:Can achieve max. 1T heavy tube processing, the processing diameter is up to 360mm (Φ360mm, □250*250mm).

  • Economy:3-chucks zero-tailing cutting, which can realize the cutting processing of loading of 12-meters all in one piece material, unloading of 6-meters all in one piece material and zero-tailing processing.

  • Precision:Ultra heavy and ultra long tube laser cutting, anti-shake suppression technology, completely solve small hole round cutting technology of ultra heavy and long tubes.

  • Economy:4-chucks zero-tailing cutting, which can realize cutting and zero-tailing processing of loading and unloading of 12-meters all in one piece material.

  • Flexibility:Modular design, can be customized according to customer requirements, unit modules can be adjusted according to the actual needs.

  • Diversity :Multi-type, automated, multi-process combination processing technology.

Parameters

Item

Parameters
Model

TP12036M

LT12036M

CNC System



FSCUT

SIMENS

Specification

Power

3000W、6000W、12000W

Size

19.3m×6.5m×2.8m

Weight

Approx.23T

Material

Type

Carbon steel or stainless steel round tube, square tube, rectangular tube, elliptical tube, angle iron, channel steel, H-shaped steel, etc

Diameter

Φ20mm-Φ360mm

Loading Capacity

5000mm-12000mm

Unloading Capacity

0-6000mm

Single Tube Max. Weight

83.3Kg/m (1000Kg)

Operating Parameters

Total Power (reference)

110KW

Phase Number/ Power Supply Rating/ Voltage Frequency

3/380V/50Hz, Voltage Fluctuation<10%

Working Air Source

0.5-0.8MPa

Processing Area

Working Area (machine tool)

Y 0-12200mm

X 0-800mm

Z 0-350mm

C1/C2 Axis

n*360°

Positioning Accuracy

X/Y Positioning Accuracy

±0.05mm/500mm

X/Y Repeat Positioning Accuracy

±0.05mm

Remark:

1. If the material is covered with a PVC protective film, it must be removed. With PVC protective film will not only lead to poor processing, but also make the machinery corroded and does harm tn human heath due to the production of chlorine gas.

2. The diameter of chuck indicates the maximum section of the round tube that can be processed is Φ360mm, square tube 250mm*250mm. For other profiles (H steel, I steel, L steel etc.) or selectional materials with non-standard section, please confirm with HGLaser technicians.
