WALC High Power 2D Laser Cutting Machine
WALC-Q Series

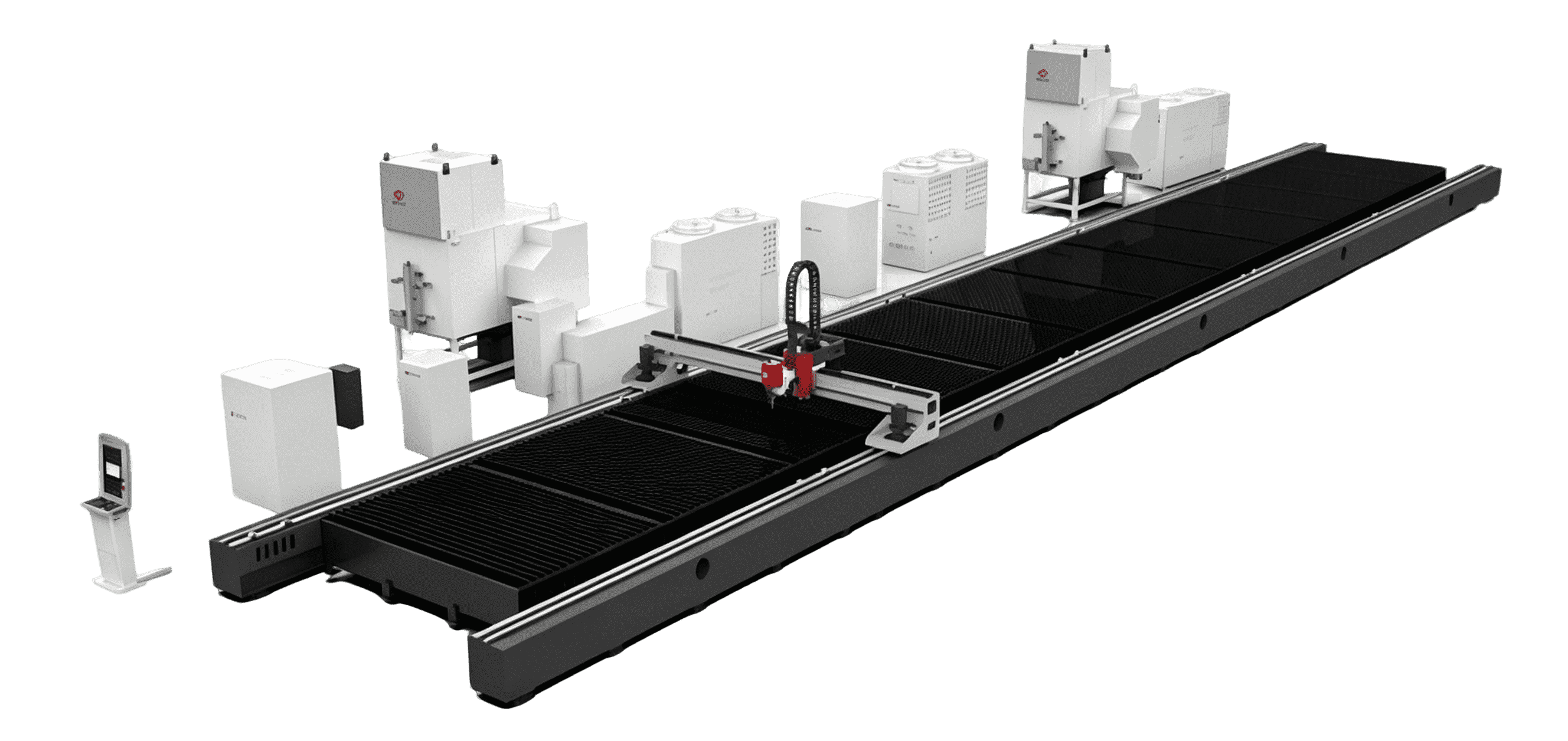

Lightweight WALC-Q series high-power laser cutting machine is a processing equipment used for construction machinery, steel towers and adapting to intelligent production lines and smart factories. Its characteristics: high dynamics, high speed, and high precision. The bed and the workbench are separated, good openness, excellent dust removal effect, suitable for automated production line.

Product Data

WALC-Q series

WALC High Power 2D Laser Cutting Machine



Lightweight WALC-Q series high-power laser cutting machine is a processing equipment used for construction machinery, steel towers and adapting to intelligent production lines and smart factories. Its characteristics: high dynamics, high speed, and high precision. The bed and the workbench are separated, good openness, excellent dust removal effect, suitable for automated production line.



High Efficiency

Lightweight design,high dynamic performance,high running speed, can be matched with automatic loading,unloading and sorting mechanism;

Convenience

Can extend functions such as visual edge finding, first piece inspection, inkjet lining etc.,and is convenient to access intelligent production line and smart factories;

Expandable

Visual monitoring, handheld unit,diverse database management, dynamic display.strong man-machine interaction.





Industry Application

Bridge Manufacturing

Bridge
Manufacturing

Steel Tower

Steel
Tower

Automobile Manufacturer

Automobile
Manufacturer

Shipbuilding

Shipbuilding

Construction Machinery

Construction
Machinery







Techincal Parameters:

Project Main Parametrs
Basic Specification Laser Power 6000-30000W
Focal Length F200 ~ F300mm automatic focus
Operating System Windows 10(Chinese and English)
CNC System FARLEY-A, FARLEY-H
Display System 23.6-inch touch display (mouse operation supported)
Machining Range Vertical Cutting Metal material arbitary shape workpiece cutting, marking, etc.
Processing Capability Carbon Steel Plate Cutting Thickness(O2) Vertically cut MAX 80mm
Stainless Steel Plate Cutting Thickness(N2) Vertically cut MAX 100mm
Aluminum Steel Plate Cutting Thickness(N2) Vertically cut MAX 100mm
Processing Stroke X Axis Stroke MAX 28m(cutomizable)
Y Axis Stroke MAX 4m(cutomizable)
Z Axis Stroke 250mm
Processing Accuracy X Axis Positioning Accuracy 0.1mm/10m(≤10m),0.2mm/full length
YX Axis Positioning Accuracy 0.05mm
X Axis Repeated Positioning Accuracy 0.05mm/10m(≤10m),0.1mm/full length
Y Axis Repeated Positioning Accuracy 0.03mm
Processing Speed Maximum Acceleration 0.8G
X/Y Axis Maximum Positioning Speed 60m/min
X/Y Axis Maximum Linkage Positioning Speed 84m/min
Power Number of Phases 3
Rated Voltage 380V
Frequency 50Hz
Total Power Supply Protection Level IP54
