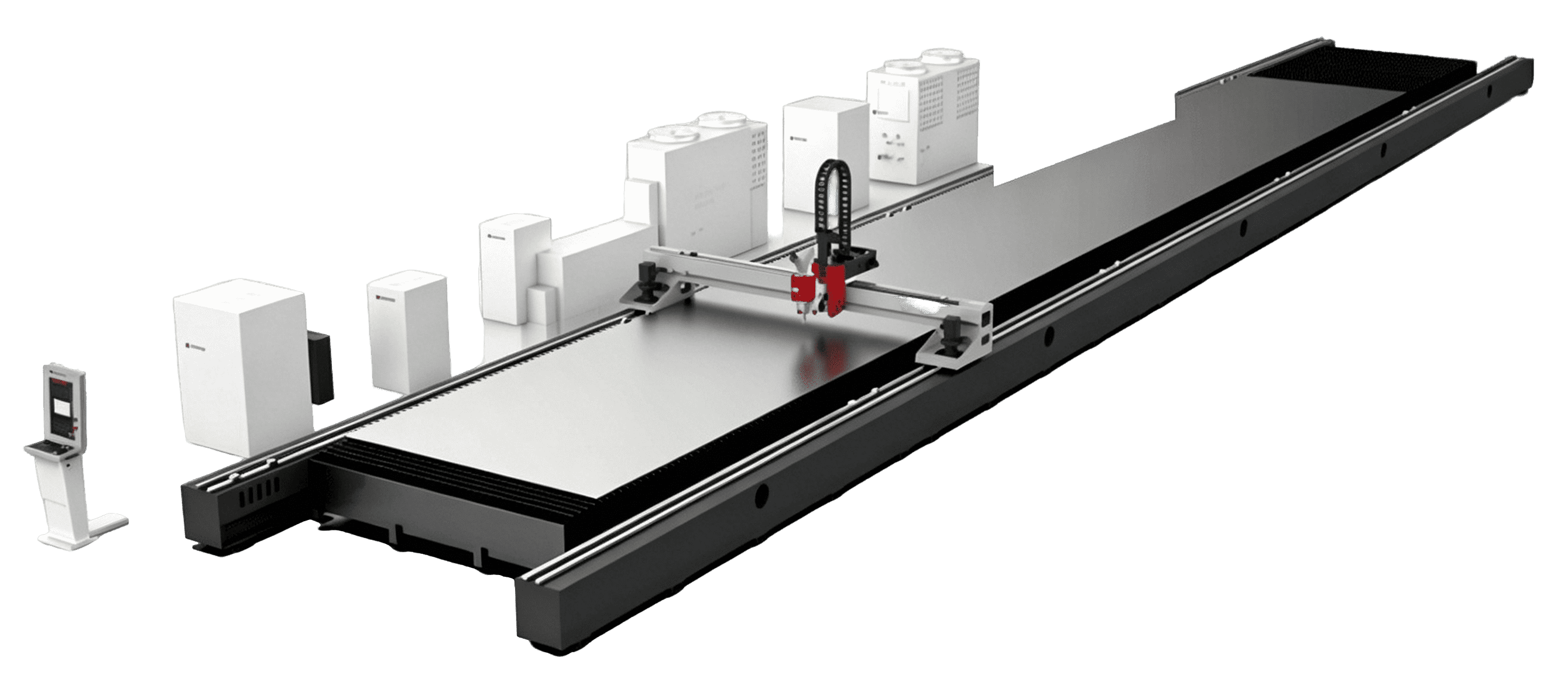

High Power Bevel Laser Cutting Machine
WALC-QP Series
Lightweight WALC-QP series high-power bevel laser cutting machine is a processing equipment designed for construction machinery,steel towers and adapting to bevel cutting requirements of intelligent production lines and smart factories. It has the characteristics of high dynamic,high speed and high precision,and can also adapt to intelligent production line and smart factory for automated processing.

Product Data

WALC-QP series

WALC High Power Bevel Laser Cutting Machine



Lightweight WALC-QP series high-power bevel laser cutting machine is a processing equipment designed for construction machinery,steel towers and adapting to bevel cutting requirements of intelligent production lines and smart factories. It has the characteristics of high dynamic,high speed and high precision,and can also adapt to intelligent production line and smart factory for automated processing.



Hight Efficiency

Good dynamic performance,high running speed, bevel cutting speed increased by more than 3 times compared with traditional process.the product is processed at one step;

High Precision

Bevel cutting angle error ± 1° .precision error ± 1mm;

Expandable

Visual edge finding, visual monitoring,first piece inspection,code scribing, and other functions can be expanded.





Industry Application

Bridge Manufacturing

Bridge
Manufacturing

Steel Tower

Steel
Tower

Automobile Manufacturer

Automobile
Manufacturer

Shipbuilding

Shipbuilding

Construction Machinery

Construction
Machinery







Project Main Parametrs
Basic Specification Laser Power 6000-30000W
Focal Length F200 ~ F300mm automatic focus
Operating System Windows 10(Chinese and English)
CNC System FARLEY-A, FARLEY-H
Display System 23.6-inch touch display (mouse operation supported)
Machining Range Vertical Cutting Carbon steel/stainless steel/aluminum sheet V/Y/X/K bevel cutting ±45°
Processing Capability Carbon Steel Plate Cutting Thickness(O2) Vertically cut MAX 80mm Bevel cut MAX 30mm
Stainless Steel Plate Cutting Thickness(N2) Vertically cut MAX 100mm Bevel cut MAX 25mm
Aluminum Steel Plate Cutting Thickness(N2) Vertically cut MAX 100mm Bevel cut MAX 20mm
Processing Stroke X Axis Stroke MAX 28m(cutomizable)
Y Axis Stroke MAX 4m(cutomizable)
Z Axis Stroke 300mm
Processing Accuracy X Axis Positioning Accuracy 0.1mm/10m(≤10m),0.2mm/full length
YX Axis Positioning Accuracy 0.05mm
X Axis Repeated Positioning Accuracy 0.05mm/10m(≤10m),0.1mm/full length
Y Axis Repeated Positioning Accuracy 0.03mm
Processing Speed Maximum Acceleration 0.8G
X/Y Axis Maximum Positioning Speed 60m/min
X/Y Axis Maximum Linkage Positioning Speed 84m/min
Power Number of Phases 3
Rated Voltage 380V
Frequency 50Hz
Total Power Supply Protection Level IP54
