Large Surface High-Power Groove Cutting Machine
WALC-P Series

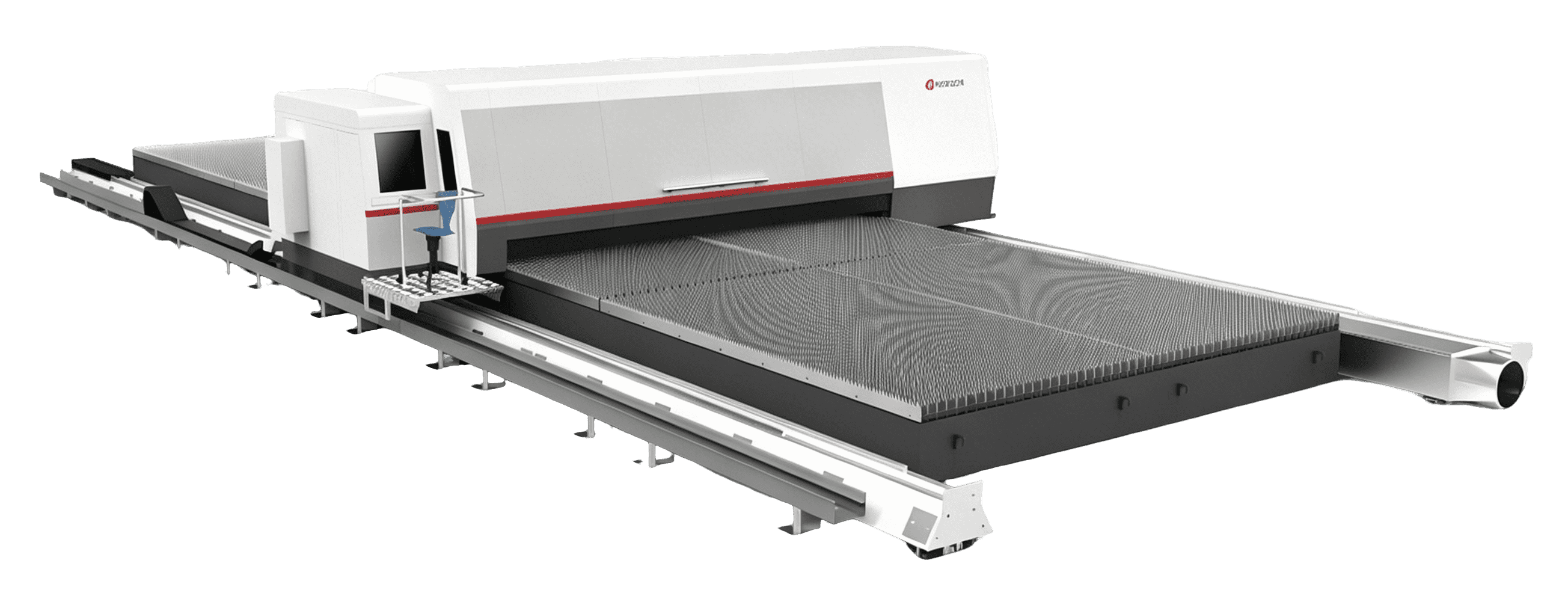

The standard WALC-P series high-power bevel laser cutting machine is a general-purpose processing equipment designed for the needs of bevel cutting in construction machinery, bridges and ships and other industries. Its biggest feature is that it can process various types of bevel, plate straight cutting and bevel cutting in one-step, without subsequent transfer and bevel processing procedures.

Product Data

WALC-P series

WALC High Power Bevel Laser Cutting Machine



The standard WALC-P series high-power bevel laser cutting machine is a general-purpose processing equipment designed for the needs of bevel cutting in construction machinery, bridges and ships and other industries. Its biggest feature is that it can process various types of bevel, plate straight cutting and bevel cutting in one-step, without subsequent transfer and bevel processing procedures.



Efficiency

The bevel cutting speed is increased by more than 3 times compared with the traditional process,and the product is processed at one step;

Strong Function

It can realize the bevel cutting of special-shaped parts,and can also process gradual bevel and directional bevel.

High Precision

Bevel cutting angle error ± 1° precision error 土 1mm.





Industry Application

Bridge Manufacturing

Bridge
Manufacturing

Steel Tower

Steel
Tower

Automobile Manufacturer

Automobile
Manufacturer

Shipbuilding

Shipbuilding

Construction Machinery

Construction
Machinery







Technical Parameters:

Project Main Parametrs
Basic Specification Laser Power 6000-30000W
Focal Length F200 ~ F300mm automatic focus
Operating System Windows 10(Chinese and English)
CNC System FARLEY-A, FARLEY-H
Display System 23.6-inch touch display (mouse operation supported)
Machining Range Vertical Cutting Metal material arbitary shape workpiece cutting, marking, etc.
Machining Range Bevel Cutting Carbon steel/stainless steel/aluminum sheet V/Y/X/K bevel cutting ±45°
Processing Capability Carbon Steel Plate Cutting Thickness(O2) Vertically cut MAX 80mm Bevel cut MAX 30mm
Stainless Steel Plate Cutting Thickness(N2) Vertically cut MAX 100mm Bevel cut MAX 25mm
Aluminum Steel Plate Cutting Thickness(N2) Vertically cut MAX 100mm Bevel cut MAX 20mm
Processing Stroke X Axis Stroke MAX 50m(cutomizable)
Y Axis Stroke MAX 6m(cutomizable)
Z Axis Stroke 300mm
Processing Accuracy X Axis Positioning Accuracy 0.1mm/10m(≤10m),0.2mm/full length
YX Axis Positioning Accuracy 0.05mm
X Axis Repeated Positioning Accuracy 0.05mm/10m(≤10m),0.1mm/full length
Y Axis Repeated Positioning Accuracy 0.03mm
Processing Speed Maximum Acceleration 0.6G
X/Y Axis Maximum Positioning Speed 40m/min
X/Y Axis Maximum Linkage Positioning Speed 56m/min
Power Number of Phases 3
Rated Voltage 380V
Frequency 50Hz
Total Power Supply Protection Level IP54
