Welding Bottlenecks Behind High-Efficiency Motors

In the field of new energy vehicle (NEV) drive motors, hairpin copper wires have become the mainstream solution for optimizing motor efficiency and power density thanks to their high slot fill factor and compact arrangement. Statistics show that the copper fill rate of hairpin windings can reach up to 73%, significantly higher than the 45–50% of traditional round wire windings. However, these structural advantages also introduce major manufacturing challenges.

Copper wire laser welding addresses several critical issues. Copper exhibits extremely high reflectivity to traditional infrared (IR) lasers, making effective energy coupling difficult. Its excellent thermal conductivity causes rapid heat dissipation, which destabilizes the molten pool during welding and often leads to defects such as porosity, spatter, and cracks. Hairpin motors require weld seams with sufficient cross-sectional area and electrical conductivity to prevent insulation damage or efficiency loss from excessive heat. Traditional welding methods like resistance welding or micro-TIG cannot reliably handle highly reflective, large-cross-section copper and may introduce bubbles or uneven resistance, resulting in unstable motor performance.

Efficiency and Quality Advantages of Copper Wire Laser Welding

Using green and blue lasers for copper wire laser welding dramatically improves absorption and molten pool stability. For example, studies show that with a 515 nm green laser, copper absorption increases significantly compared with infrared, enabling smoother weld formation; penetration depths can reach approximately 2.7 mm at 100 mm/s scanning speed. Comparative research on IR, green, and blue lasers in pure copper welding demonstrates that green and blue lasers achieve higher melting efficiency and more stable keyhole behavior.

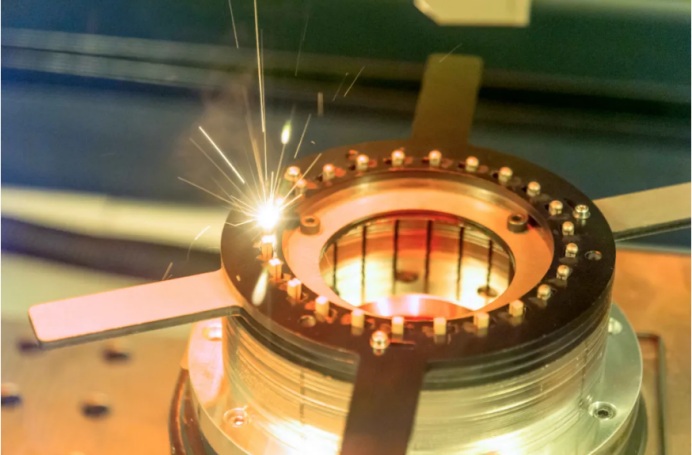

Practical data from hairpin motor welding systems reinforce these findings. A high-end copper wire laser welding solution using a hybrid beam configuration—small-spot central beam combined with a ring-shaped auxiliary beam—achieves deep fusion welding with minimal heat-affected zones, no spatter, and no porosity. Weld strength consistently exceeds 1400 N, porosity rates remain below 10%, and defect rates are at or under 5%. Welding efficiency improves by 200% compared with previous-generation processes, while overall production line efficiency increases by more than 30%.

HGLaser has made industry-leading breakthroughs in copper wire laser welding. By combining ring-shaped fiber lasers with advanced dual-beam hybrid welding, they enable near-spatter-free, porosity-free, high-strength welding for both hairpin and X-pin copper wire motors. Their equipment consistently achieves weld strengths above 1400 N, porosity rates below 10%, defect rates ≤ 5%, and welding efficiency improvements of up to 200%. Full-field galvanometer scanning with coaxial vision alignment allows precise zone calibration and one-shot welding, greatly enhancing stability and productivity.

Driving the Upgrade of NEV Manufacturing

Copper wire laser welding, with its high energy density, controllable heat input, and excellent molten pool stability, is rapidly becoming the industry’s preferred solution. Real-world data show that this technology can achieve weld strengths exceeding 1400 N with defect rates below 5%, while also increasing production line efficiency by over 200%. This enables automakers and motor manufacturers to optimize costs, quality, and efficiency simultaneously. As the technology continues to mature and more companies adopt it, copper wire laser welding is expected to become the standard process for manufacturing hairpin motor powertrains in new energy vehicles, driving the industry toward a more efficient and intelligent future.
