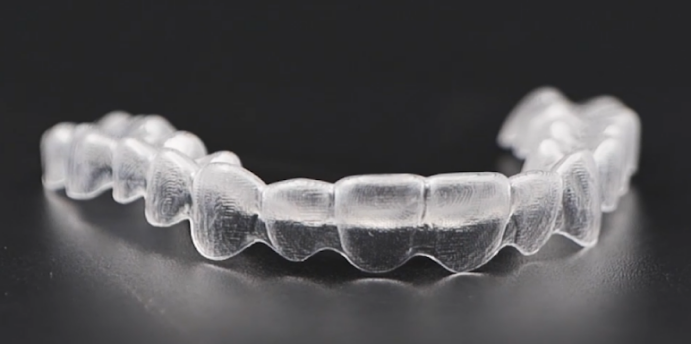

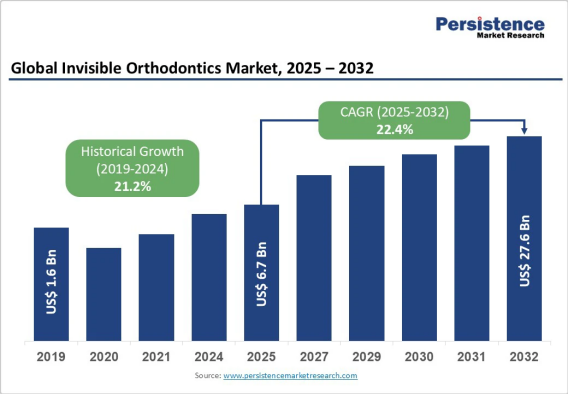

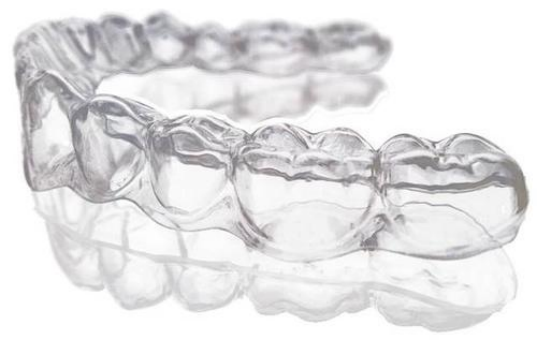

With the rise of consumer upgrades and increasing awareness of oral health, clear aligners have become the market mainstream due to their aesthetic, comfortable, and convenient features. According to Persistence Market Research, the global clear aligner market is projected to grow at a compound annual growth rate (CAGR) of 22.4% from 2025 to 2032, with the market size expected to increase from $6.7 billion to $27.6 billion. As the market expands, clear aligners pose unprecedented challenges in terms of processing accuracy, efficiency, and consistency.

Traditional cutting processes, which face technical limitations in precision, flexibility, and environmental friendliness, can no longer meet the growing demand. In particular, the processing accuracy of clear aligners directly affects clinical adaptability and wearing comfort. The core process, stripping and cutting, has long faced issues such as burrs, tool wear, high material consumption, and environmental pollution caused by mechanical contact. These shortcomings not only increase the need for subsequent polishing but also limit the flexibility and efficiency of production, affecting the sustainable development of the industry.

To address these challenges, HGTECH has introduced a full-process intelligent solution for clear aligner cutting by integrating "Laser + Robot + CAM Software" technology. This solution has completely revolutionized the traditional processing model.

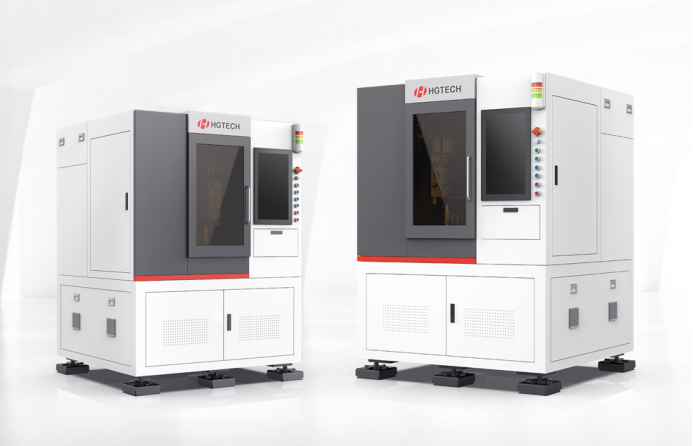

Clear Aligner Intelligent Laser Cutting Equipment

3D Five-Axis Core Architecture

The equipment is equipped with a professional 3D five-axis motion platform that can precisely cut the irregular curved surfaces of clear aligners. Through CAM software, it automatically extracts the gum line trajectory, intelligently plans cutting paths, and generates robot movement paths. This technology effectively eliminates path deviations in traditional processing and can adjust parameters in real time based on the polymer material's curved shape, ensuring that every cut meets design specifications.

Key Technologies and Core Parameters

HGTECH uses an 80W CO₂ laser, combined with a water-cooling system, to achieve a mechanical repeat positioning accuracy of ±2μm and a system processing accuracy of ±0.1mm within a processing range of 200mm × 200mm × 150mm. The cutting speed can reach 100mm/s, and the cutting time for a single aligner is only 10-20 seconds, which is 4-5 times faster than traditional processes, meeting the demand for large-scale mass production.

Process Advantages

Cutting Quality Upgrade: The laser's non-contact processing avoids mechanical damage, resulting in smooth cutting edges with fewer burrs. This reduces the risks associated with secondary processing, ensuring the comfort of the aligners.

Cost Efficiency: No need to frequently replace tools or consume materials, and there is no waste pollution during processing, which aligns with green production standards.

Intelligent Flexibility: Supports personalized designs for different brands and patients. The software automatically adjusts cutting parameters to meet both large-scale production and custom needs.

HGTECH adheres to a "self-developed technology + ecological collaboration" development path, achieving several core technological breakthroughs in the field of clear aligner cutting. Through strategic cooperation with Kaihao Technology, HGTECH has accelerated the industrialization of these technologies. This solution has already been successfully applied in multiple clear aligner brand factories in China and has gained wide recognition in the market.

As a leader in the laser processing industry, HGTECH will continue to drive technological innovation, deepen industry-academia-research cooperation, and further enhance the precision and efficiency of clear aligner manufacturing. In the future, HGTECH will continue to provide more flexible, intelligent, and environmentally friendly production solutions for clear aligner brands, promoting the industry's development toward high quality and large-scale production.
