Overview

Coil Blanking

Using laser cutting technology of open-book blanking of a complete set of production equipment, by feeding trolley, uncoiled, leveling machine, buffer loop, servo feeder (such as servo leveling and feeding machine can replace the previous leveler and buffer loop, reducing area), laser cutting device, cutting platform, pallet device, waste treatment system, hydraulic pneumatic system and electric control system, through the system control of laser cutting head in laser cutting platform of 3 d motion cutting, instead of press and die, the realization of automatic blanking of the metal belt.

Solution

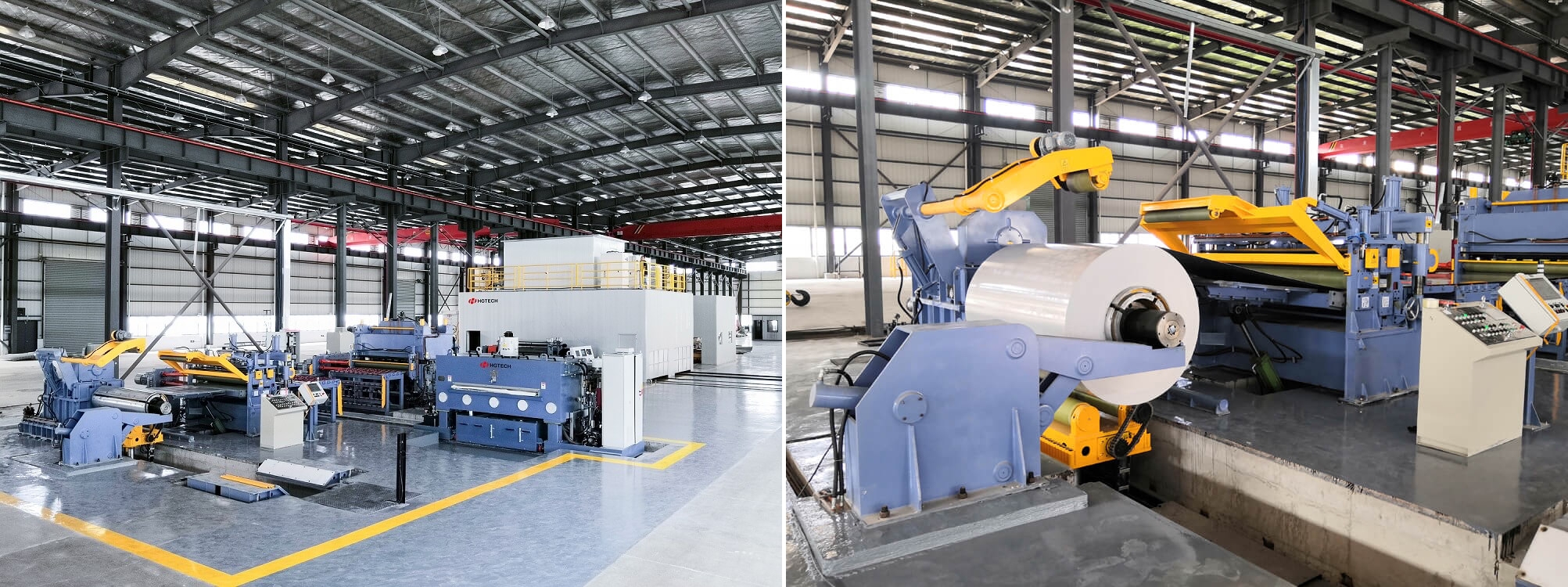

Laser blanking production line

Our company began to develop new laser cutting blanking equipment in 2011, and obtained the national invention patent in 2013.

Using laser cutting technology of open-book blanking of a complete set of production equipment, by feeding trolley, uncoiled, leveling machine, buffer loop, servo feeder (such as servo leveling and feeding machine can replace the previous leveler and buffer loop, reducing area), laser cutting device, cutting platform, pallet device, waste treatment system, hydraulic pneumatic system and electric control system, through the system control of laser cutting head in laser cutting platform of 3 d motion cutting, instead of press and die, the realization of automatic blanking of the metal belt.



Product features:

  • Low investment in equipment
  • High Efficiency
  • High Flexibility
  • Low maintenance cost
  • High quality products
  • Low cost of use
  • High material utilization rate



Product features:

  • Low investment in equipment
  • High Efficiency
  • High Flexibility
  • Low maintenance cost
  • High quality products
  • Low cost of use
  • High material utilization rate



Technical Parameters:
Model CPL-3*2150
Laser power 3*6kw 3*4kw or 3*6kw
Focal length 125 Auto focus
Operation system Windows7
Operating software Siemens 840D sl
Leveling feeding rate 0-50m/min
Cutting speed 50m/min(1mmm,)Single Cutting Head
Raw Material Parameters:
Material Common cold rolled steel plate, galvanized plate, pickling plate, 5 series, 6 series aluminum alloy plate
Tensile strength 220-980MPaTensile strength: 220-980mpa
Sheet metal thickness steel plate: Min0.5 – Max3.5 (mm)Aluminum plate: Min0.6 – Max3.0 (mm)
Coil width 500-2150 mm
coil weight 20 - 30t
Coil inner diameter Φ508 mm / Φ610 mm
Coil outer diameter Φ800 - Φ2000 mm
Finished Product Parameters:
Material piece length 150-4000mm
Blank shape Rectangle material, abnormity material, trapezoid piece
Contour precision ±0.5 mm / m
Leveling precision 1mm /m2
Plant environmental and energy conditions:
Environment temperature -5℃~45℃
Ambient relative humidity 80%
Power supply AC3×380V±10%,50HZ±2HZ
Compressed air 0.6MPa and 1.4MPa
Cooling water Industrial water, industrial purified water





Our Strengths

Laser blanking production line



Our company began to develop new laser cutting blanking equipment in 2011, and obtained the national invention patent in 2013.

High efficiency line



Compared with existing laser cutting equipment, laser cutting blanking production line USES roll material to produce billet, which replaces the production process of rolling material slicing and cutting on the equipment, and improves the production efficiency

High Flexibility



No need to manufacture mould, adopt advanced layout software and control system, the product specification and shape change quickly, suitable for all kinds of batch production
