HGLaser: Advancing AI Optical Transceiver Manufacturing with Intelligent Coupling Technologies

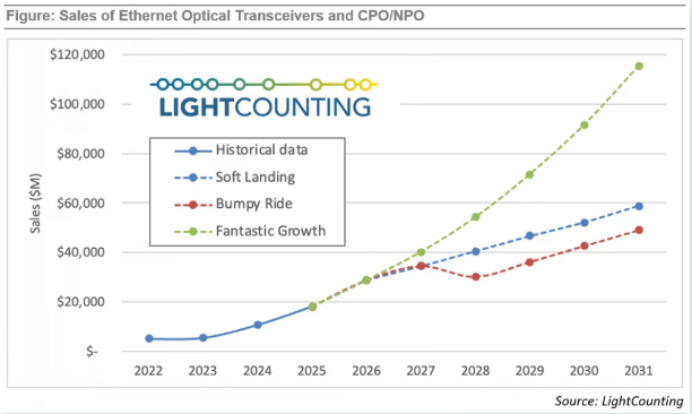

As AI computing infrastructure continues to accelerate globally, the optical transceiver market is entering a new phase of rapid growth. According to the latest data from LightCounting, the market size of high-speed optical transceivers used in AI clusters is expected to reach USD 16.5 billion in 2025 and grow to USD 26 billion in 2026, representing approximately 60% year-on-year growth for two consecutive years.

800G optical transceivers have entered large-scale deployment, while 1.6T optical transceivers are beginning commercial adoption.

The explosive growth in market demand and accelerating deployment of high-speed optical transceivers are placing unprecedented pressure on manufacturing processes — and coupling has become one of the most critical steps.

PART 01 Coupling: The “Heart Surgery” of Optical Transceiver Manufacturing

The essence of optical coupling is achieving precise optical alignment.

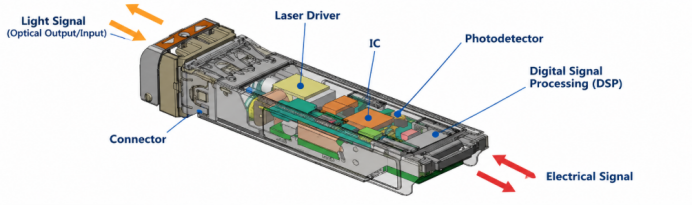

On the transmitter (TX) side, coupling enables optical signals generated by lasers to be efficiently guided into optical fibers or waveguides through optical components such as lenses and Fiber Arrays (FA), ensuring precise optical path alignment.

On the receiver (RX) side, coupling aligns optical signals transmitted through optical fibers with photodetectors (PD) through optical components such as Fiber Arrays (FA), Arrayed Waveguide Gratings (AWG), or receiver assemblies, enabling efficient optical signal reception.

A complete optical transceiver production line typically consists of 15–20 key process stations, covering multiple procedures including die attach, bonding, coupling, assembly, and inspection.

Among these processes, optical coupling represents the highest technical barrier, the longest processing time, and one of the most critical factors affecting product performance.

According to industry statistics, the coupling process accounts for approximately 60%–70% of the total production cost and manufacturing time of optical components, often becoming the primary bottleneck during production ramp-up.

Taking 1.6T silicon photonics optical transceivers as an example, coupling alignment accuracy has advanced from ±5 μm in the 400G era to ±0.5 μm or even higher precision requirements.

For 1.6T silicon photonics Fiber Array (FA) coupling, alignment precision requirements have reached the nanometer level (±20 nm), far beyond the capability of manual operations.

Every 1% improvement in coupling efficiency reduces optical loss and increases the link budget margin of the transceiver. Every 1 percentage point improvement in coupling yield can generate significant manufacturing cost savings for a production line with an annual capacity of 100,000 units — often reaching the million-dollar level in high-speed optical transceiver manufacturing.

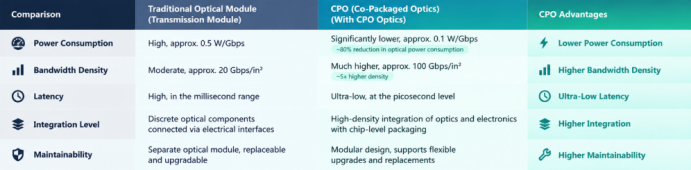

Meanwhile, the advancement of CPO (Co-Packaged Optics) technology is reshaping optical transceiver architectures.

The alignment and coupling between Fiber Arrays (FA) and silicon photonic chip waveguides are widely recognized as one of the most challenging processes in optical transceiver manufacturing.

As optical engines transition from pluggable architectures to co-packaged solutions, coupling is evolving from discrete component alignment toward highly integrated chip-level alignment, requiring more alignment dimensions, tighter packaging space, and even higher precision.

Traditional manual or semi-automated processes can no longer simultaneously satisfy the requirements of yield, efficiency, and traceability.

Therefore, intelligent manufacturing equipment has become a key driver in the next stage of optical transceiver industry development.

PART 02 HGLaser: Full-Process Closed-Loop Solutions

To address the challenges of precision and efficiency in optical transceiver coupling, HGLaser has developed an intelligent equipment portfolio covering two major categories: optical coupling and optical transceiver coupling.

The solutions support applications ranging from traditional pluggable optical transceivers to silicon photonics optical transceivers, covering processes from COB/COC coupling to Lens coupling and Fiber Array (FA) coupling, enabling comprehensive manufacturing solutions across multiple scenarios.

Optical Coupling

Focused on precision optical alignment, optical coupling solutions serve the precision packaging and manufacturing of optical components and pump source lasers.

Through beam quality analysis and multi-axis precision alignment technologies, these solutions address efficiency and consistency challenges in internal optical path coupling of components such as pump source lasers, providing stable and reliable optical components for downstream optical transceiver manufacturing.

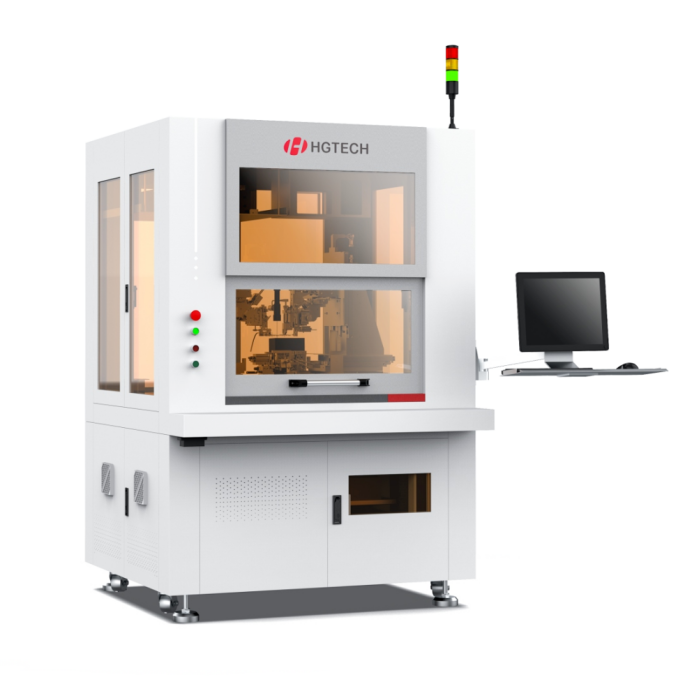

Fully Automated Optical Power Coupling Assembly Equipment for Reflector Mirrors

Designed for the fully automated coupling assembly of large reflector mirrors in pump source lasers.

The equipment integrates:

Fully automated loading and unloading
Automatic gripping of beam combining mirrors and large reflector mirrors
Automated optical coupling
Dispensing and curing
Real-time coupling efficiency monitoring

Key features include:

Fully automated active coupling
High coupling efficiency with high integration
High product compatibility and excellent consistency
Support for pump source internal beam combining and PBS (Polarizing Beam Splitter) mirror coupling applications

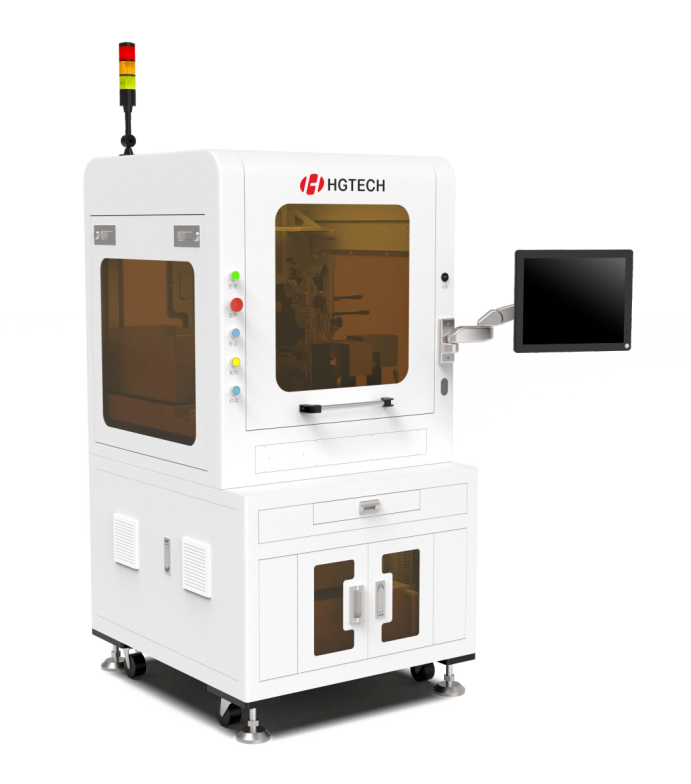

FAC Fast Axis Collimation Assembly Intelligent Equipment

Designed for automated FAC collimation assembly in the front-end process of pump source lasers.

The equipment covers FAC alignment and coupling applications for both pump source lasers and optical transceivers.

It integrates:

Automatic FAC lens handling
Automated coupling
Dispensing and fixing
Real-time process data monitoring
Through beam quality analysis, the system identifies the optimal coupling position of FAC lenses.

Key features include:

Supports both active and passive coupling modes
Fully automated active coupling with high efficiency and integration
High product compatibility and consistency
One-click automatic calibration

Optical Transceiver Coupling

Focused on module-level integration processes, optical transceiver coupling solutions serve the final assembly stages of optical transceiver production lines.

The solutions cover applications including:

COB-Lens coupling with VCSEL/PD chips
Silicon photonics Fiber Array (FA) coupling
Through nanometer-level precision motion platforms and vision alignment systems, the solutions achieve high-precision alignment from multi-axis positioning to six-axis alignment, followed by UV curing fixation.

These technologies directly determine optical transmission performance and mass production yield of optical transceivers.

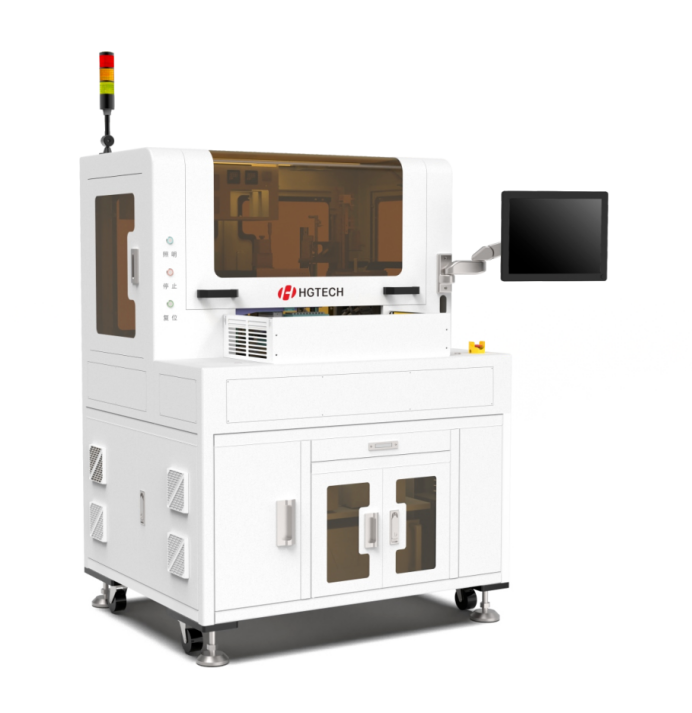

400G/800G Multimode Lens Coupling Alignment Intelligent Equipment

Designed for high-precision coupling of COB-Lens and VCSEL + PD chips in multimode optical transceivers.

Through precision motion platforms, vision alignment systems, and real-time optical power monitoring, the equipment enables high-precision alignment of optical transceiver core components and completes fixation through UV adhesive curing.

Key features include:

Higher Precision
Enabling micro-nano assembly and high-precision optical coupling.

Broader Compatibility
Supporting optical transceiver products with different optical emission and reception architectures.

Advanced Technology
Featuring a modular technology architecture for continuous upgrades, a six-axis motion platform with positioning accuracy below 0.1 μm, and multi-channel balanced coupling algorithms.

Faster Calibration
Supporting one-click automatic calibration and rapid calibration for product model changes.

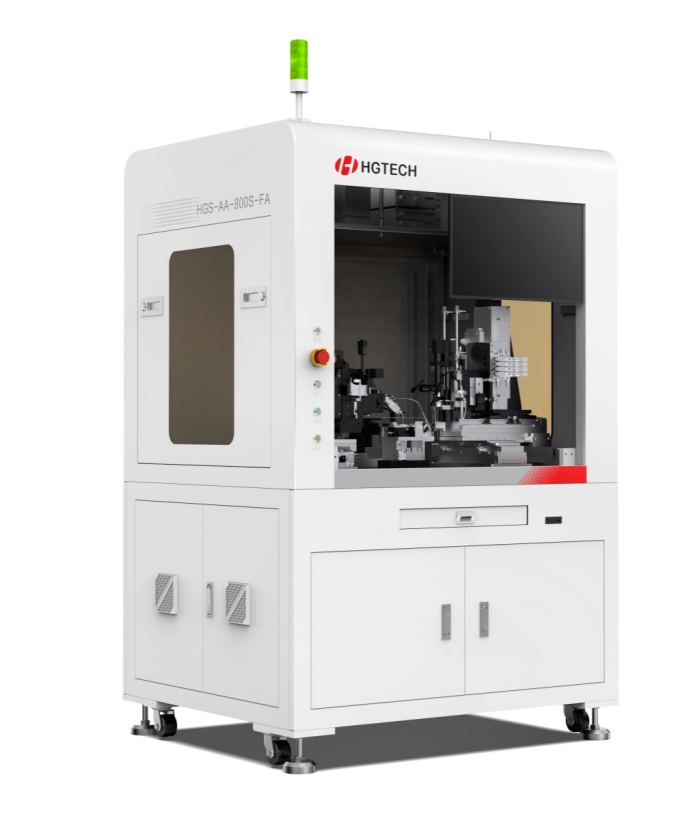

400G–12.8T Single-Mode Silicon Photonics Coupling Intelligent Equipment

Based on a unified platform architecture, this solution supports optical transceivers ranging from 400G to 12.8T.

It is compatible with:

Multimode solutions (COB-Lens + VCSEL/PD)

Single-mode solutions (DR4/FR4, DR8/FR8, LPO, CPO, NPO, XPO)

The equipment supports both Lens coupling and Fiber Array (FA) coupling processes, targeting applications including:

Data centers

AI computing clusters

On-board optical interconnects

Key features include:

Higher Precision

Alignment resolution: up to ±10 nm

Positioning repeatability: ±50 nm

Angular accuracy: ±0.005°

Broader Compatibility

Compatible with multi-channel products featuring 1.25 mm channel spacing

Supports parallel operation of up to 8 channels

Supports both Lens coupling and Fiber Array (FA) coupling process routes

Covers full-rate applications from 400G to 12.8T

Advanced Technology

Modular technology architecture supporting continuous upgrades

UPH: 20 PCS/H

Yield: >99.5%

Faster Calibration

One-click automatic calibration

One-click calibration for product model changes

From 400G to 1.6T, optical transceiver speeds continue to advance, while packaging architectures continue to evolve.

With every generation upgrade, HGLaser continues to evolve alongside industry demands.

Through comprehensive coupling equipment and full-process manufacturing solutions, HGLaser transforms every process challenge into reliable production yield for customers, continuously pushing the limits of optical transceiver mass production.
